Quick description

equipped in analytical instrument

laboratory in University and research institute
plastic surface treatment and coating process
water treatment sampling
Liquid chromatography
Assort with dry granulating machine
Filtration of cell culture fluid

• Storage function, external control function, power off memory, calibration function, full speed function, Suckback function.


• multiple external control mode selection: support RS485 / MODBUS communication protocol, analog control (0-5V0-10V 4-20mA...) foot switch control, provide customized communication protocol services.

• data will be stored in time after power off. When power supply is restored, the pump can remember the parameter Settings before power off, which is more safe and reliable.

• one button to control full speed operation, used for quick cleaning, filling and emptying tubes, etc.

• the pump can be customized after the shutdown reverse operation speed and Angle, To keep the liquid from dripping.
  3-LED display.

• Flexible control mode:  key and external control mode, convenient for users to choose to use.

• The pump adopts Two-way high-torque low-power motor, it can install a variety of pump heads: YZ series, DG series, BZseries, according to the customer's actual application, multiple pump heads can be

• connected in series to meet different flow requirements.

Technical parameter

• Speed: 0.1 to 100 rpm, reversible

• Speed precision: 0.1 rpm

• Speed control: Membrane keypad cw(green light)/ ccw(blue light) control

• Display: 3-digit LED displays current rpm

• External control: Start/stop, cw/ccw control and speed control 0-5 V/10 V, 4-20 mA and 0-10KHz

• Communication interface: RS485

• Power supply: AC 90V-260 V 50/60 Hz

• Power consumption: ≤30 W

• Operating condition: Temperature 0 to 40 ℃, Relative humidity < 80%

• Drive weight: 2.5 kg

• Dimensions (L×W×H): 243×151×157 (mm)

• IP rating: IP 31

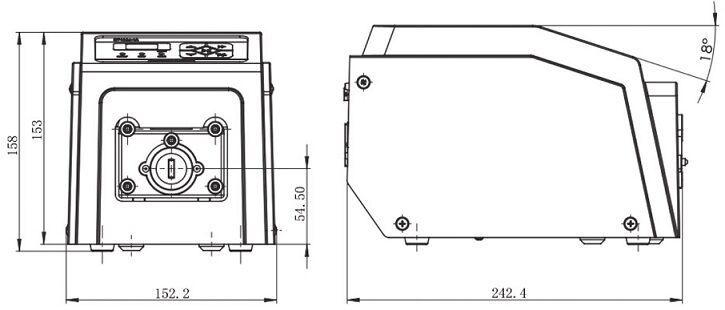

EASUREMENTS:
