Features

• Developed for high‑volume liquid‑transfer applications in production‑line settings. It is powered by an AC geared motor with variable‑speed control. The split layout of drive unit and control unit helps elevate the equipment IP‑rating for enhanced protection

• Cooperatively‑designed drum‑form rollers and concave pressure‑block contact surfaces deliver steady‑run performance. The structure self‑adapts to tubing and minimizes hose abrasion
• The transparent protective cover enables convenient visual inspection of working status. A handwheel is equipped for fine‑tuning the hose‑compression clearance
• This peristaltic pump features a separated structure for the VFD speed‑controller and driving assembly. The configuration facilitates remote operation, on‑site installation and routine maintenance

Technical parameters

• Motor rotational‑speed range: 30‑350 rpm, clockwise / counter‑clockwise rotation available

• Speed adjustment resolution: 0.6 rpm
• Control modes: Push‑button & knob operation, external analogue‑signal control and serial‑port communication
• Indicator: LED display on the VFD (Variable‑frequency Drive)
• Analogue speed‑control inputs: 0‑5 V, 0‑10 V, 4‑20 mA
• Start‑stop signal input: Digital switch‑signal control
• Rotation‑direction (CW/CCW) signal input: Digital switch‑signal control
• Communication Interface: RS485 with Modbus‑RTU protocol
• Overall dimensions: 415 × 401 × 321 mm
• Rated power supply: AC 220 V ±10%
• Rated power consumption: 400 W
• Ambient operating‑temperature: 0 ℃‑40 ℃
• Permitted relative‑humidity: Less than 80%
• Net weight: 32 kg
• Ingress‑protection rating: IP54

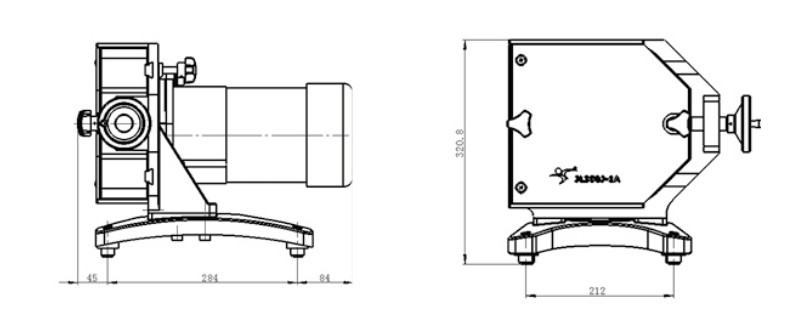

Diagram
