Basic Pump
YT600s-2A
Flow range ≤13000ml/min
CONTACT US
CHARACTER
TECHNICAL PARAMETERS
Features
Driven by stepper motor to deliver outstanding stability under low‑flow working conditions
One‑click toggle between rotational‑speed (RPM) and flow‑rate display (calibrated against No.82 tubing for flow‑rate benchmark)- Built‑in support for the Modbus communications protocol. Compact‑ and lightweight‑sized design with accessible RS485 communication interface
- When fitted with a single‑channel pump head, the unit may work with a dispensing controller to accomplish circulating‑liquid regulation as well as timed start‑stop operation
Compatible with stainless‑steel pump‑head assemblies. Primary application sectors cover food‑processing equipment and pharmaceutical‑packaging machinery
Technical Parameters
- Motor rotational speed: 1‑650 rpm, clockwise and counter‑clockwise rotation available
- Control mode: Button‑equipped adjusting knob, compatible with external signal control
- Speed adjustment: Digital encoder knob regulation
- Operation control: Panel switch for counter‑clockwise rotation, halt and clockwise‑rotation selection
- External control functions: Start‑stop, rotation direction switching and speed adjustment via analogue signals (4‑20mA, 0‑5V, 0‑10V)
- Input power supply: Optional AC 110 V / 220 V
- Rated power consumption: ≤ 150 W
- Operating ambient temperature: 0‑40℃
- Permitted relative humidity: Below 80%
- Overall dimensions: 360×240×200 mm
- Ingress‑protection grade: IP31
- Net weight: 15.22 kg (drive‑unit only)

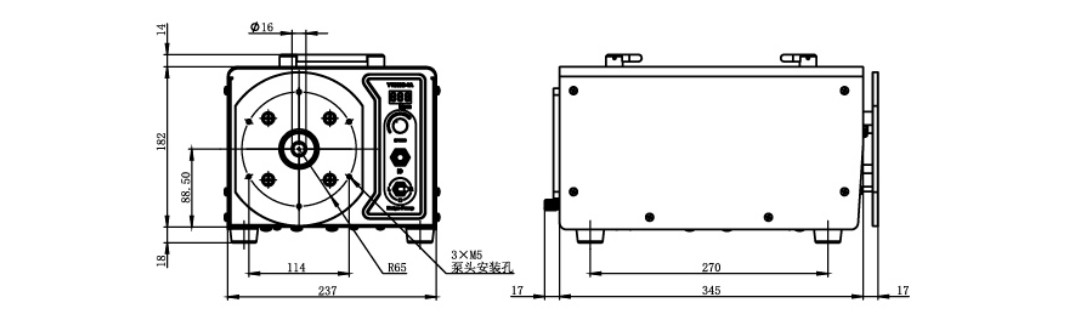

Diagram
Technical table
