Precision: ≤5‰
Stroke length: 3000 steps (30mm)
Control precision: 1 step（0.01mm）
Speed: 0.025-25mm/s
Single stroke operating time：1.2--1200s
Compatible Syringe: 50ul、100ul、250ul、500ul、1ml、2.5ml、5ml
Valve type: two position three way electromagnetic valve
Turn time: ≤100ms

Programmable Capabilities: Ramps, cutoff velocity, backlash compensation, syringe speeds, loops, terminate moves and delays, error detection, valve rotation selection, enhanced “h” factor capabilities including valve rotation CW and CCW

Precision: ≤5‰
Stroke length: 6000 steps (60mm)
Control precision: 1 step (0.01mm)
Speed: 0.05-50mm/s

Precision: ≤5‰
Stroke length: 6000 steps (60mm)
Control precision: 1 step (0.01mm)
Speed: 0.05-50mm/s

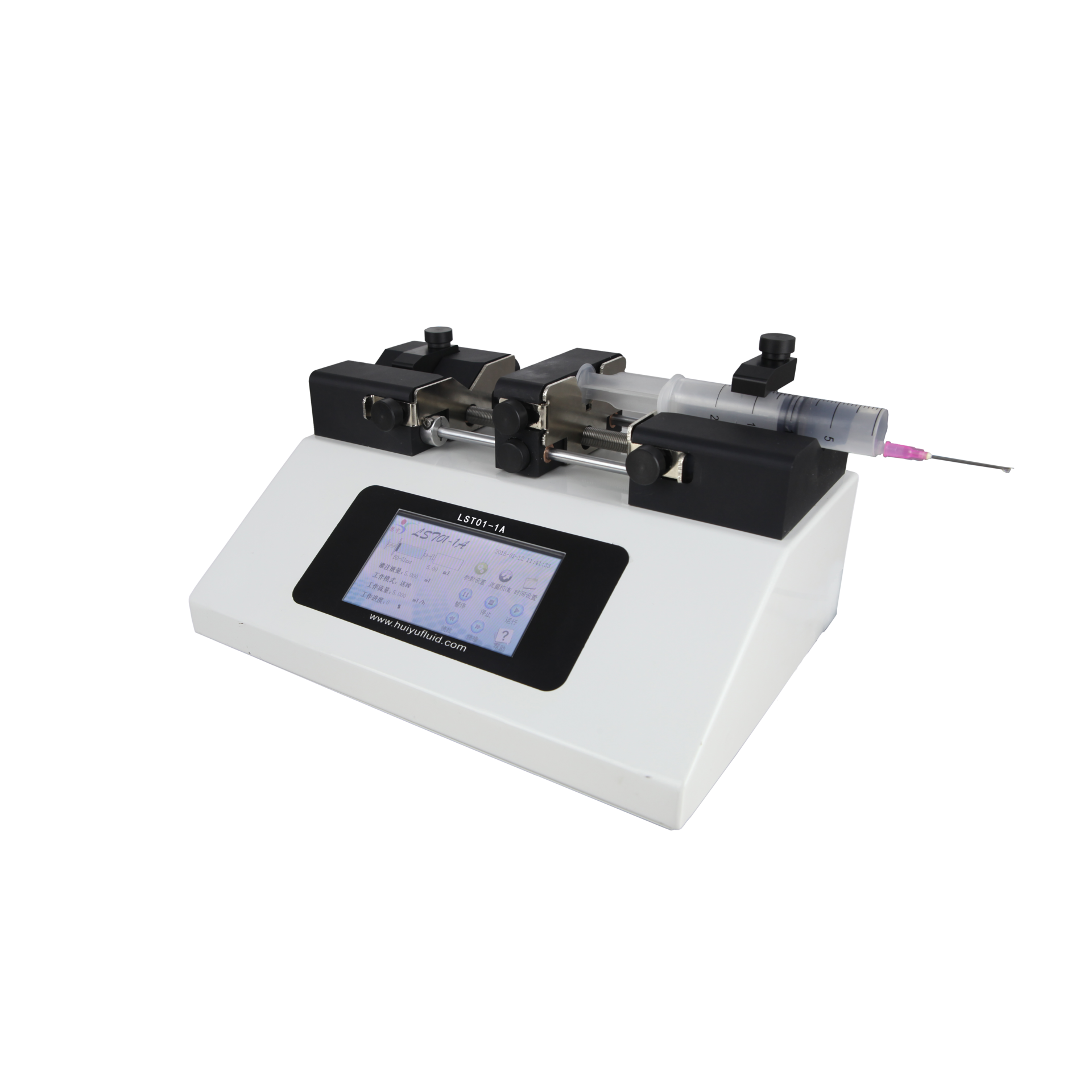

LST01-1A micro volume touch screen syringe pumps is single channel syringe pump which is mainly used in bio-laboratory. The acceptable syringe specification is from 10 μL to 10 mL. Suitable for high accuracy and small flow rate liquid transferring.

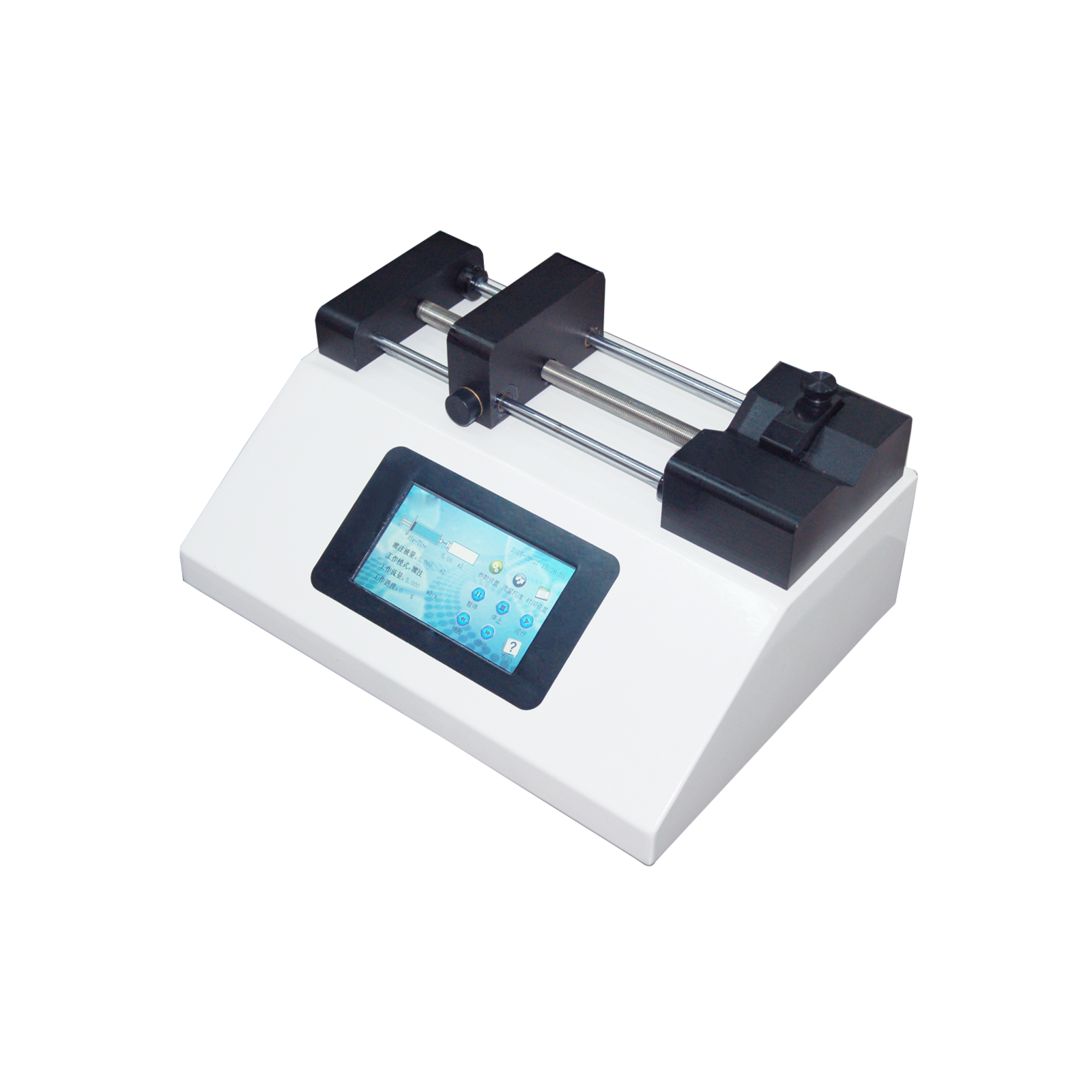

LST01-1B injection pump is a perfusion/extraction type, single-channel injection pump, touch screen control, integrated structure.
Applicable occasions: biological laboratory field, long-term animal drug microinjection experiment, electrostatic spinning, chemical reaction injection experiment, etc.
