Features

• Stainless‑steel casing with superior ingress‑protection rating

• Designed for multi‑channel set‑ups.

• Core strengths consist of substantial output torque, minimal vibration, excellent energy‑saving performance and maintenance‑free operation.

• It is driven by a direct‑current brush‑less motor with integrated closed‑loop circuit‑based speed regulation

Technical Parameters

• Motor speed range: 60‑600 rpm• Speed‑control accuracy: ≤ ±1%• Speed adjustment resolution: 1 rpm

• Rated output torque: 1.5 N·m

• Indicator panel: 3‑digit LED screen for rotational‑speed readout; four status‑indicator LEDs

• Parameter‑memory function: automatic storage of operating settings

• External speed regulation: adjustable‑speed control (60‑600 rpm) via 0.5‑5 V / 1‑10 V / 4‑20 mA / 1‑10‑kHz pulse signals

• Communication interface: RS485• Operating ambient temperature: 0 ℃‑40 ℃

• Maximum permissible relative humidity: ≤90%

• Optional power‑supply input: 110 V AC or 220 V AC, 50 / 60 Hz• Rated power consumption: ≤ 200 W

• Overall outer dimension: 250 × 190 × 255 mm

• Net weight: 8 kg

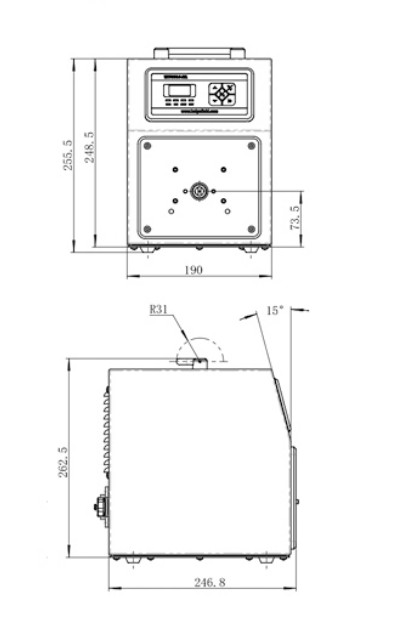

Diagram
