Features

• Equipped with an industrial‑grade explosion‑proof motor. The integrated‑type structure enables direct connection to the pump‑head. Rotate the handwheel to regulate motor speed. A variable‑frequency drive (VFD) is also available to realise multi‑functional control.

• The motor‑top mounted junction box permits four‑way cable entry. It accommodates rubber‑sheathed cables as well as steel‑pipe wiring layouts. The terminal block holds 3‑6 wiring terminals plus one dedicated earth‑ground terminal. Cable‑gland outlets are configured as one port for M8‑and‑below fittings, or two ports for M10‑and‑above fittings according to specifications.
• Boasts high‑level ingress protection and ample output torque, capable of driving several pump‑heads simultaneously.

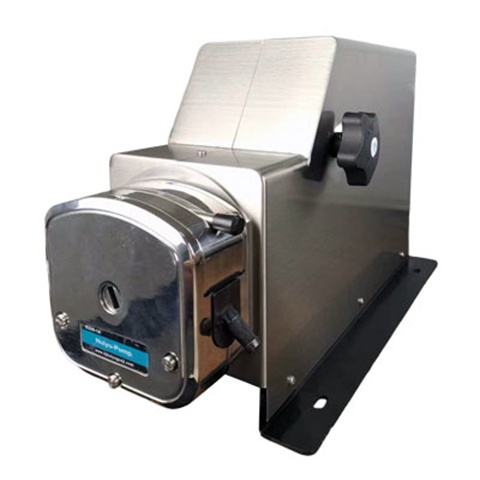

• Optional stainless‑steel corrosion‑resistant outer casing for installation on‑site.

Technical parameters

• Explosion‑proof certification mark: ExdⅠ Mb, Exd Ⅱ BT4Gb
• Operating power supply: Three‑phase 380 V, 50 Hz
• Flow capacity: ≤ 13000 mL/min
• Motor speed adjustment range: 150‑610 rpm
• Optional rated working‑voltage: AC 380 V, 660 V, 1140 V
• Rated motor power: 0.37 kW
• Control modes: Manual operation and communication‑based remote control
• Ingress‑protection grade: IP55
• Net motor weight: 29.2 kg
• Ambient operating‑temperature: 0‑40 °C
• Maximum permissible relative‑humidity: ＜80%
• Overall dimensions: 444 × 260 × 299 mm; 458 × 260 × 318 mm when fitted with outer casing

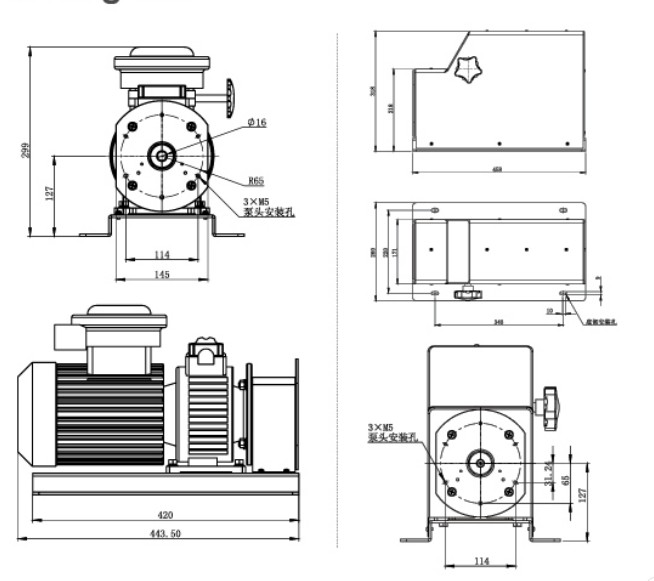

Diagram
