Basic Pump

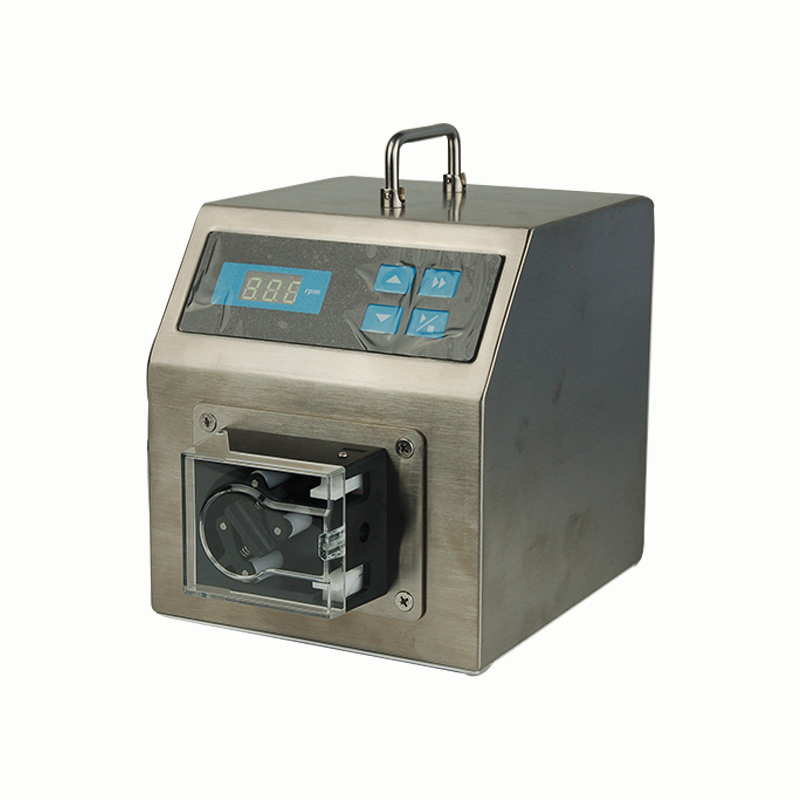

BT300J-2A（03）
Flow range ≤ 680ml/min
CONTACT US
CHARACTER
TECHNICAL PARAMETERS
Features
●Medical‑grade customized peristaltic pump, fitted with stainless‑steel enclosure and heavy‑duty protective construction
●Default clockwise‑rotation setting for convenient medical‑grade tube assembly; bespoke logo label customization supported
●Stepper‑motor power system guarantees steady, uninterrupted medium‑and‑small‑rate liquid transportation
●Built‑in power‑failure memory, leak‑detection protection and overheat‑protection mechanisms
Technical Specifications
- •Rotational‑speed range: 1‑300 rpm, 1‑rpm adjusting resolution
- •Speed control: keypad operation
- •Screen read‑out: three‑digit digital display
- •Input power source: 90‑260 V AC, 50/60 Hz
- •Rated power consumption: maximum 50 W
- •Operating ambient condition: 0‑40℃, relative humidity below 80%
- •Outer dimension (L×W×H): 226×160×194 mm
- •Net weight: 2.7 kg
•Ingress‑protection grade: IP55

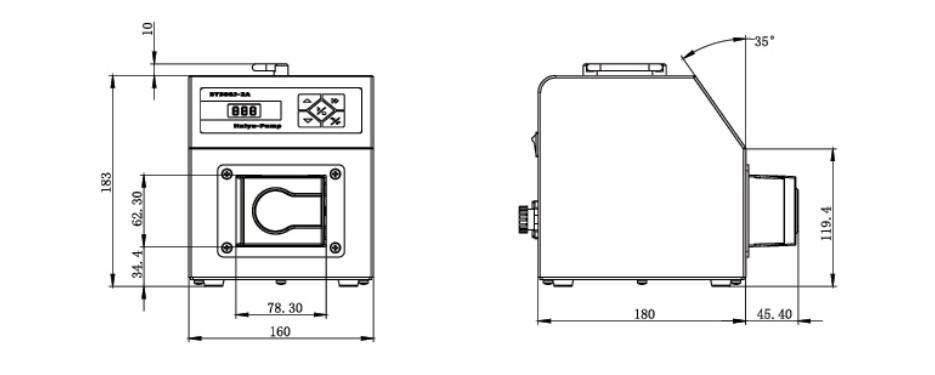

Diagram
Technical table
