Industrial distribution type intelligent peristaltic pump, high protection level Suitable for damp, dusty and other industrial production environments

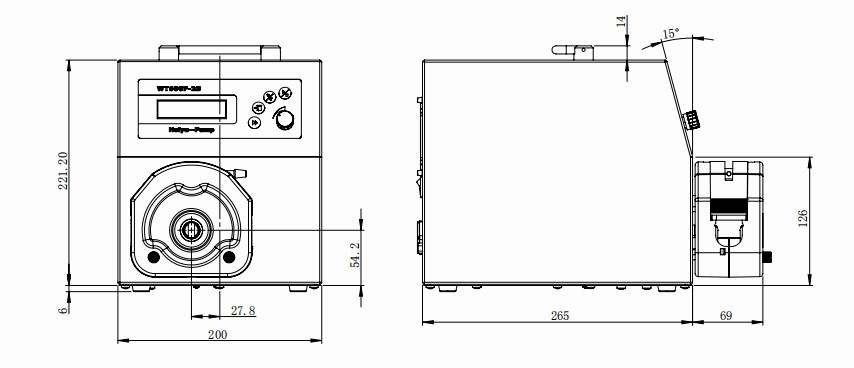

Dimensions

Technical Parameters

• Speed range: 10rpm-600rpm, forward and reverse reversible

• Speed adjustment resolution: 1rpm

• Distributed liquid volume range: 0.1ml - 99.9L

• Distribution liquid volume correction: The actual dispensed liquid amount value obtained by setting the dispensed liquid amount is input, and the dispensed liquid amount correction is automatically performed.

• allocation times range: 1-999 times, "0" is an infinite loop

• Distribution interval time range: 0.1s-99min, adjust the resolution 0.1s

• External control function: Start/stop control, direction control, speed control (4-20mA, 0-5V, 0-10V, 0-10kHz optional)

• Speed status signal output: 166.7Hz-10kHz linear corresponding to 10rpm-600rpm

• Start and stop status signal output: OC gate signal output

• Direction status signal output: OC gate signal output

• Communication interface: RS485

• Applicable power supply: AC 110v or 220V/200W

• Measurement :270*200*230mm

• Full speed function: One-button control at full speed for filling, emptying, etc.

• Ambient temperature: 0-40 ° C

• Relative humidity: <80%

• Protection rating: IP31
