Technical parameter

• Speed: 1 to 600 rpm, reversible

• Speed resolution: 1 rpm

• Speed control: rotary encoder switch, acceptable external control and communication control

• Display: 3-digit LED displays current speed

• Analog interface: Start/stop and cw/ccw control, 0 to 5 V, 0 to 10 V, 4 to 20 mA and 0 to 10 KHz speed control

• Communication interface: RS485

• Memory function: Storing the running parameters automatically

• Prime button for fast filling and emptying

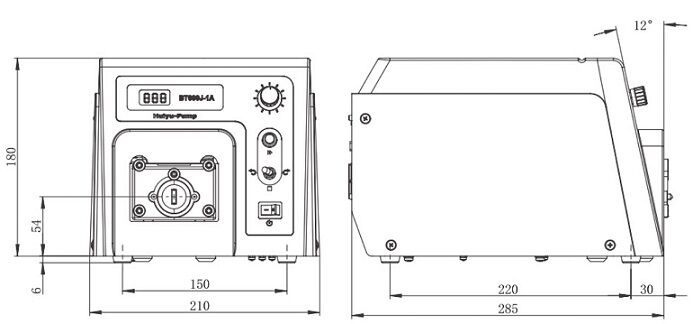

• Dimensions (L×W×H): 285×207×180 (mm)

• Power supply: AC 90V-260V/100W

• Operating condition: Temperature 0 to 40℃ Relative humidity < 80%

• IP rating: IP 31

• Drive weight: 3.8 kg

EASUREMENTS:
