Technical parameter

• Speed: 1 to 300 rpm, reversible


• Speed resolution: 1 rpm

• Running direction: cw/ccw

• Display: 3-digit LED displays current speed

• Analog interface: Start/stop and cw/ccw control, 0 to 5V, 0 to 10V, 4 to 20 mA and 0 to 10 KHz speed control

• Communication interface: RS485

• Power supply: AC 90 - 260V 50/60 Hz

• Power consumption: < 50W

• Operating condition: Temperature 0 to 40℃ Relative humidity < 80%

• Drive weight: 3.5 kg

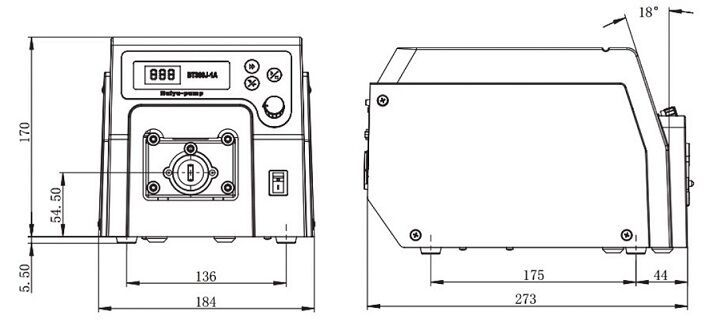

• Dimensions (L×W×H): 276×184×175 (mm)

• IP rating: IP 31
