Technical parameter

• Speed: 0.1 to 100 rpm, reversible

• Speed precision: 0.1 rpm

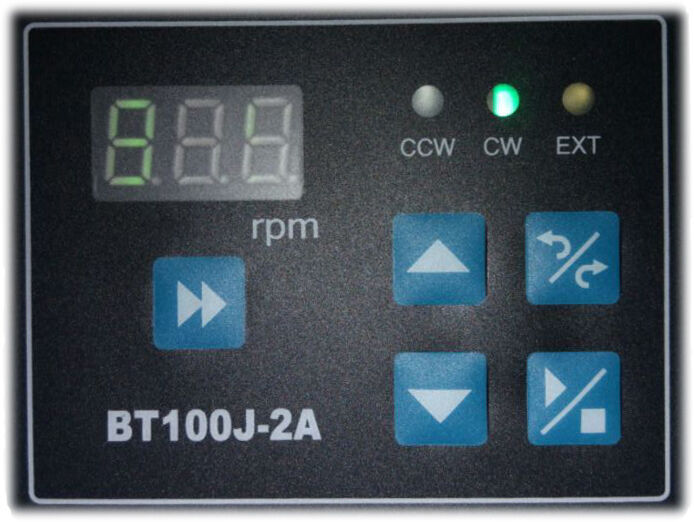

• Speed control: Membrane keypad cw(green light)/ ccw(blue light) control

• Display: 3-digit LED displays current rpm

• External control: Start/stop, cw/ccw control and speed control 0-5 V/10 V, 4-20 mA and 0-10KHz

• Communication interface: RS485

• Power supply: AC 220V 50/60 Hz

• Power consumption: ≤30 W

• Operating condition: Temperature 0 to 40 ℃, Relative humidity < 80%

• Drive weight: 2.5 kg

• Dimensions (L×W×H): 170×100×110 (mm)

• IP rating: IP 31
