Features
The built‑in high‑capacity battery supports 4‑5 hours of pump operation.
Ideal for off‑site outdoor tasks such as field water and air sampling with no mains‑power supply.
Four‑level battery‑status indicator for remaining‑power reading.
This is China’s first patented peristaltic‑pump model fitted with a built‑in rechargeable battery.
Technical Parameters
•Motor speed range: 0.1‑100 rpm, speed resolution: 0.1 rpm • Rotation direction: Clockwise / Counter‑clockwise reversible •Operation mode: Membrane keypad •Display: 3‑digit LED speed readout; 4‑segment LED battery‑level indicator •External control: Start‑stop, direction switching and speed regulation. Available signal options: 0‑5 V, 0‑10 V, 4‑20 mA, 0‑10 kHz • Communication Interface: RS485 • Power Source: High‑capacity built‑in rechargeable battery • Maximum Power Consumption: 30 W •Operating Conditions: Ambient temperature 0‑40 ℃, relative humidity less than 80% • Overall Dimensions: 243 × 151 × 157 mm • Net Weight: 2.58 kg • Ingress‑protection Grade: IP31

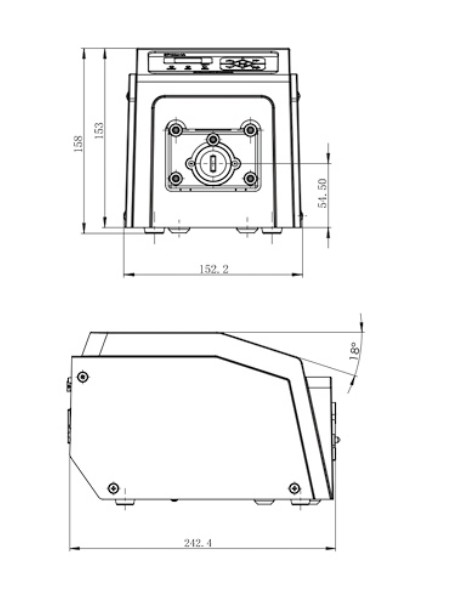

Dimension Diagram
•Front‑face width: 152.2 mm •Overall height: 158 mm •Pump‑head mounting centre height: 54.50 mm •Body length: 242.4 mm •Inclination angle of operation panel: 18° •The dimension is consistent with the specification 243 × 151 × 157 mm (tolerance allowed).
•The tilted control panel facilitates field‑operation viewing.
Technical table
