Basic Pump
BT150J-1A
Flow range ≤250ml/min
CONTACT US
CHARACTER
TECHNICAL PARAMETERS
Features
●The spray‑painted aluminium‑alloy casing delivers superior whole‑unit corrosion‑resistance.
●Excellent electromagnetic compatibility. The pump resists outside electromagnetic disturbance and generates no interference to nearby electronics.
●Premium‑grade electronic parts together with well‑tuned hardware‑and‑firmware design guarantee long‑run dependable and steady performance.
●LED indicator for motor rotating‑speed read‑out
●Compact‑size structure and ultra‑low‑noise running
Technical Parameters
- ●Speed range: 0.1‑150 rpm, clockwise / counter‑clockwise rotation available
- ●Speed‑setting resolution: 0.1 rpm
- ●Display: 3‑digit LED screen
- ●Control modes: physical keypad, external analogue signal and serial‑port communication
- ●External control functions: start‑stop, direction switching and speed regulation. Optional control signals: 0‑5 V, 0‑10 V, 4‑20 mA and 0‑10 kHz
- ●Communication interface: RS485, compatible with the Huiyu self‑developed protocol and standard Modbus‑RTU protocol
- ●Parameter storage: automatic memory for running‑setup and system‑configuration parameters
- ●Full‑speed shortcut: one‑touch fast‑speed mode for rapid tubing filling and liquid emptying
- ●Overall dimensions: 138 × 85 × 106 mm
- ●Power requirement: wide‑range AC 90‑260 V, rated power 20 W, 50/60 Hz
- ●Operating conditions: ambient temperature 0‑40°C, relative humidity below 80%
- ●Ingress‑protection grade: IP31
●Net weight: 1.52 kg

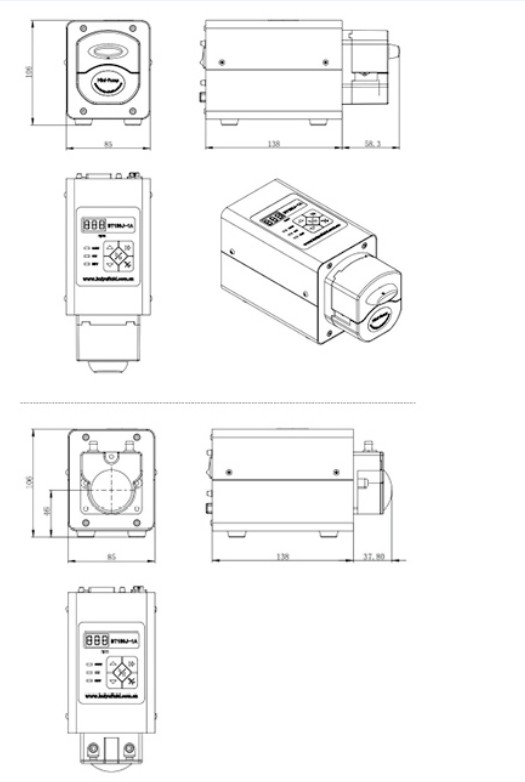

Diagram:
Technical table
