Product Introduction：

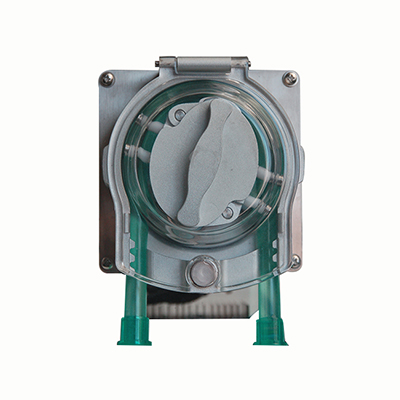

The TH20B is a spring adaptive type peristaltic pump head,widely used in the medical area, such as in hemodialysis, intraoperative irrigation, in vitro diagnostics (IVD), and biosample delivery etc..
It features a built-in self-adaptive spring roller assembly paired with a manual tube clamping lever, enabling quick installation and removal of medical tubing without tools. The spring buffer structure automatically balances tube squeezing pressure to prevent tubing rupture caused by overpressure, significantly reducing wear on medical silicone tubing and dialysis PVC tubing, extending lifespan of consumables and lowering overall maintenance costs of equipments for medical institutions.
Compatible with DC motor,stepper motor and servo motor, Embedded panel mounting, desktop complete machine assembly, adaptable to various medical equipment structures.also supports ODM/OEM customized development.
Technical Specifications：
Item | Parameter |
Rated Operating Voltage | Compatible with DC24V standard medical equipment voltage (support AC220V driver matching) |
Rated Operating Current | No-load ≤0.3A; Full-load operating current: 0.5A–0.8A (compatible with standard stepper/servo motor drive) |
Revolution per minute(RPM) | 0-300 rpm, stepless speed regulation ,linear flow output during the full RPM range |
Flow per Revolution | 3.3 mL/Rev (under standard matched tubing) |
Rated Flow Range | 0-850 mL/min, precise micro-volume transer, accuracy ±1% |
Operating Pressure Range | -0.4 bar～2.0 bar, stable performance under negative pressure suction and positive pressure transfer, equipped with built-in pressure buffer protection |
Tube Clamping Method | Spring self-adaptive clamping + manual auxiliary lever for tube loading; automatically balanced squeezing pressure to prevent tube rupture and reduce abrasion |
Compatible Tubing Specifications | Standard : Φ8×12mm medical special PVC dialysis tubing; compatible with equivalent platinum-cured silicone tubing and pharmaceutical PharMed tubing |
Pump Housing Material | Main body: high-quality aluminum alloy (anti-corrosion and wear-resistant) ; Front cover: high transparent medical-grade PC plastic for visual monitoring |
Roller Parameters | Roller material: 304 stainless steel; Roller quantity: 2 rollers; Gap method:precision fixed gap |
Core Safety Functions | Stop working once cover open and self-locking safely, automatic alarm for equipment faults, compliant with safety standards of medical device |
Features of Fluid Transfer | Low-shear transfer with non-contamination, suitable for biological fluids such as blood, reagents and cell culture medium |
Mounting Options | Embedded panel mounting, desktop complete machine assembly, adaptable to various structures of medical equipment |
Working Environment | Ambient temperature: 0℃～40℃; Relative humidity: ≤80%, suitable for operating rooms, clean laboratories and clinical testing departments |

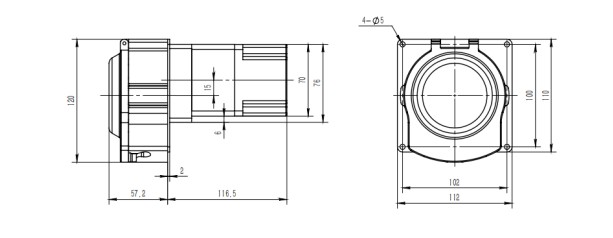

Pump Head Parameters ：
Pump Head Model | Number of Rollers | Roller Material | Housing Material | Max. RPM | Suitable Tubing ID×OD (mm) | Reference Max. Flow (mL/min) | Weight (kg) |
TH20B | 2 | 304 Stainless Steel | PC + Anodized Aluminum Alloy | ≤300 rpm | 8×12 | ≤850 | 2.3 |
