Mainly used in the medical area with specific control requirements of flow rate and pressure.

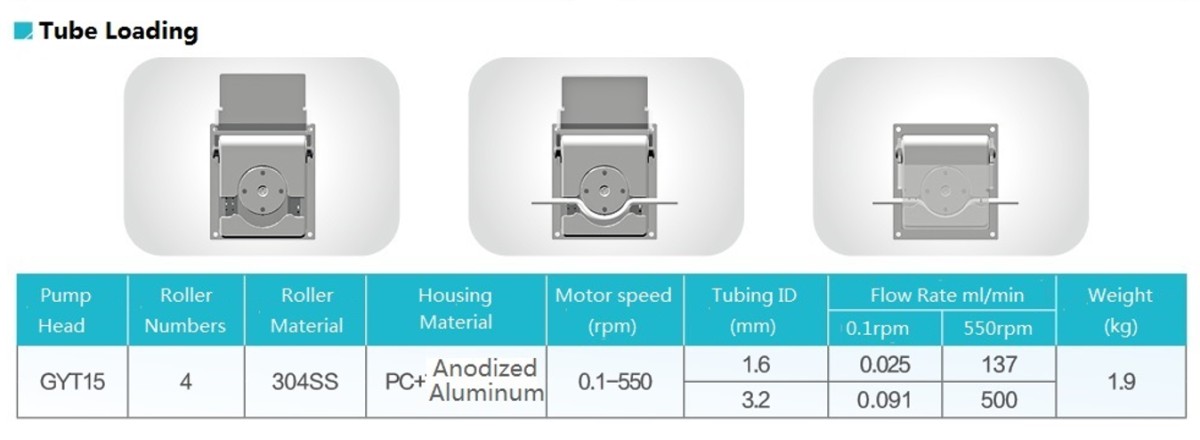

Automatic tubing clamp and quick loadlever ,simplified the replacement of tubing.

Innovative pump setting ensures accurate and stable fluid transfer.

Precision machining for high performance and long life-span.

Customized tubing for low noise operation.

Standard or customised pressure setting,each pump head can be set to different pressure rating before leave the factory.

■ Application

Cooling applications in surgery during RF and microwave ablation (Surgical ablation)

■ Technical Parameter

Speed Range: 0.1-550rpm. Speed adjustment step 0.1rpm

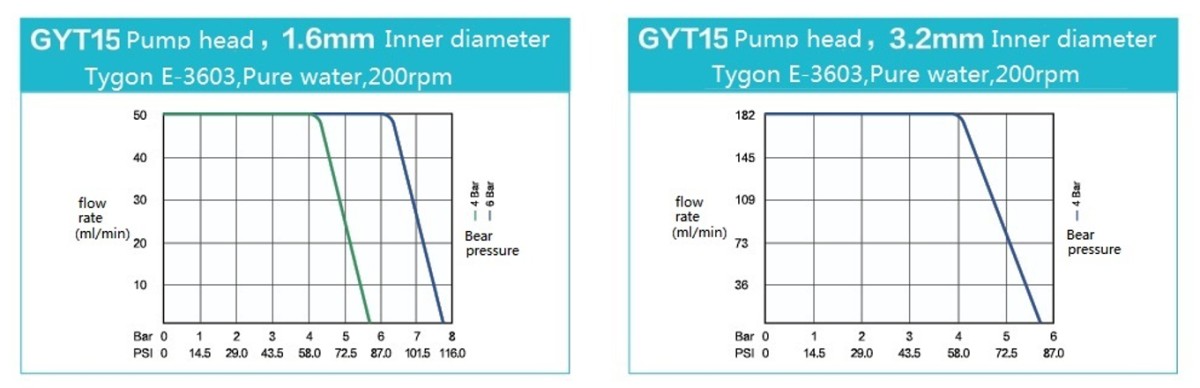

Flow Rate: ≤ 500 mL/min, Pressure < 8bar

Rated Voltage: 12V-48V DC

Power Consumption: 75W

Max Output Current: 3A

Working Temperature: 0-40°C

Operating Relative Humidity: < 80%

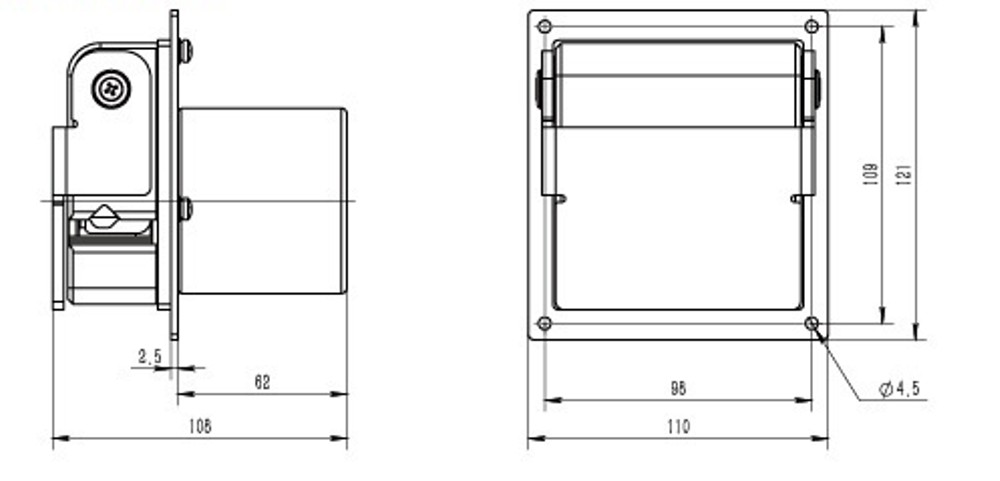

■ Dimension
