Features：

Hidden handle for manual operation in case of a sudden power off

Low noise,small size, compact structuremotor by user directly

Mostly paired with of brushless motor, or control the brushless

Mainly used in conjunction with equipment and instrument

Application: Medical dialysis field

Technical parameters

Motor parameters

Rated voltage: 24VDC

Rated current: 3.2mA

Polar logarithm: 8

Rated speed: 4000rpm

Reduction ratio: 1:19

Whole machine parameters

Motor speed: 0-100rpm, reversible

Pump head material: Zinc alloy with chrome plating treatment

Press tube method: elastic pressing tube

Suitable tubing: outer diameter ≤ 10mm, wall thickness 1.75 ± 0.2mm

Flow range: 5~300mL/min (6.5mm ID x 10mm OD)

2~165mL/min (4.6mm ID x 8.4mm OD )

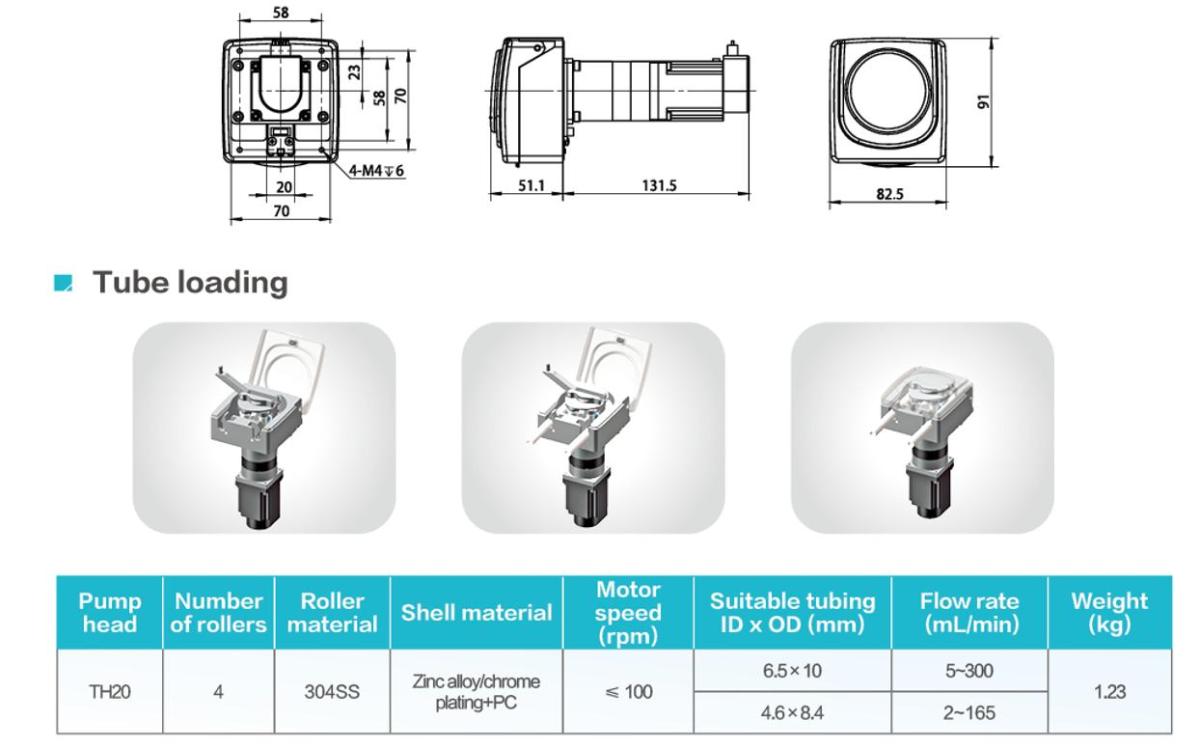

Measurement: 182.6 x 82.5 x 91mm

Working environment temperature: 0 °C -40 °C

Relative humidity: < 80%

Weight: 1.23kg
