The OEM Pump Head WX10 is a peristaltic pump developed and designed primarily for equipment‑integrating clients. It features an adjustable rotational speed up to 100 rpm and delivers a maximum flow rate of 40 mL/min. The pump adopts base‑plate mounting and supports 12 V or 24 V DC power supply options. Compact in size and structure, it is well‑suited for OEM integration.

◇ Speed Range: ≤100 rpm

◇ Speed‑control Resolution: 0.1 rpm

◇ Reference Flow Rate: ≤40 mL/min

◇ Compatible Tubing Size: Inner diameter ≤3.17 mm, wall‑thickness 0.8 mm‑1.0 mm

◇ Rotation Direction Control: Dry‑contact external input. The peristaltic pump runs clockwise when the contact is normally‑open; it runs counter‑clockwise when the contact is normally‑closed.

◇ Start‑Stop Control: Dry‑contact external input. The peristaltic pump operates when the contact is normally‑open and halts when the contact is normally‑closed.

◇ DIP‑Switch Speed Adjustment: 16‑position BCD DIP‑switch. Speed of gear 0 is controlled by external signal. Gears 1‑F correspond to rotational speeds (rpm): 5, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80, 90, 100

◇ External‑Signal Speed Control (Optional):

‑ 4‑20 mA linearly corresponds to 0.1‑100 rpm

‑ 0‑5 V linearly corresponds to 0‑100 rpm

‑ 0‑10 V linearly corresponds to 0‑100 rpm

‑ 0‑10 kHz linearly corresponds to 0‑100 rpm

◇ Communication Address Setting: The communication address (adjustable from 1 to 30) is configured via the DIP‑switch.

◇ Baud‑rate Setting: The DIP‑switch selects the communication baud‑rate between 1200 bps and 9600 bps.

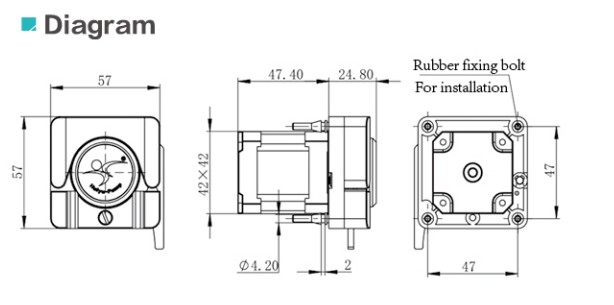

◇ Overall Dimensions (Length × Width × Height): 106×60×81 mm

◇ Ambient Operating Relative Humidity: ＜80%

◇ Ambient Operating Temperature: 0℃‑40℃

◇ Rated Power Supply: DC 11.4V‑25.2V

◇ Power Consumption: ≤12 W

◇ Net Weight: 0.51 kg
