Features

Adopt classic design of the easy load pump head, easy operation

Aluminum alloy housing, anodized treatment, anti-corrosion and easy to clean

Stainless steel rollers with excellent structural performance, good stability, and high precision

YZlI25 is suitable for more tubes than YZ25,widely flow rate, match the requirements of larger suction, outlet pressure etc. It is an ideal choice for viscous liquid transfer

Adaptive pump tube locking for faster tube replacement

Support the pump heads stacking

Can be drived by various motors as OEM product, including commonly used stepper motor, servo motor, AC motor, DC motor etc

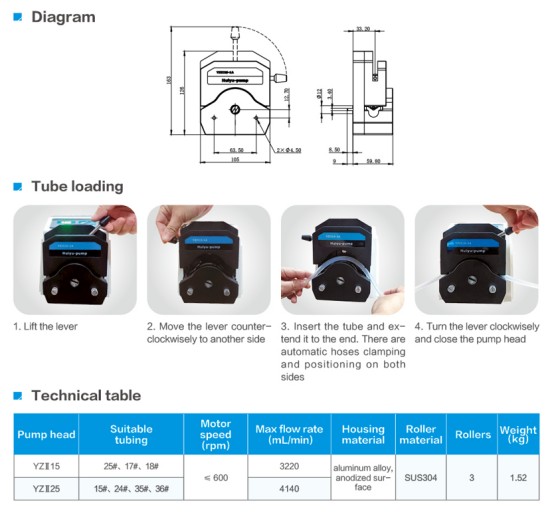

1. Lift the lever

2. Move the lever counterclockwisely to another side

3. Insert the tube and extend it to the end. There are automatic tube clamping and positioning on both sides

4. Turn the lever clockwisely and close the pump head
