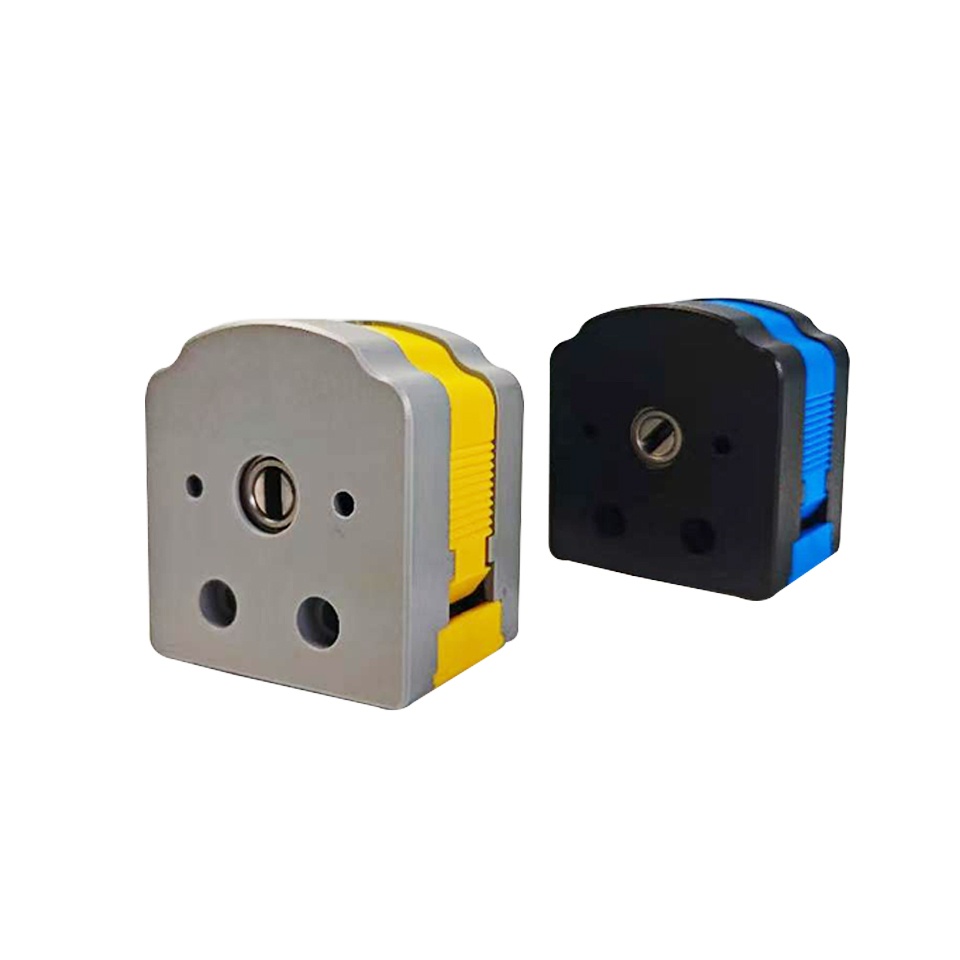

Features

Compact, Multiple color at a low price

Mainly used for OEM, designed for small and medium flow, multi-channel fluid transfer

The material of the pump casing and the rollers are both molybdenum disulfide or PET, 4-rollers

Elastic upper pressure block, standard quick-plug connector, convenient for external connection of hose of different material

KZ10 pump head is suitable for tubes with wall thick ness ≤ 1.0mm and inner diameter ≤ 3.17mm

Three types of connector

1. Soft tube connect withhard tube, support adapt-

2.Quick-plug connector, support reduce connectors

3. Standard quick-plug connector

Application

Biochemical analyzer, condensate discharge in flue gas detection, etc-

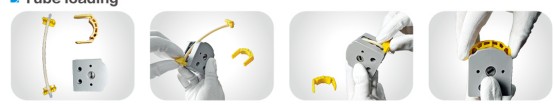

Tube loading

1. Remove the pressing block on the pump head and place the tube assembly in the bottom slot

2. Align the side slide of the tube clamp with the slide grooves on both sides of the pump head, and push it into the clamp for tightening

3. After tightening and locking the other end, visually ensure that the ttube is placed in the center of the roller

4. Align the upper pressing block with the top groove and press it in smoothly

Tubing Installation Schematic

Technical Specifications
