Features

Specially designed for high-precision medium flow filling, the dual pressing block structure with phase compensation can effectively reduce pulsation

The guillotine-style hose-fixing structure effectively prevents tube wear caused by vibration

Made of stainless steel, aluminum alloy, and polyoxymethylene materials, it has reliable performance and exquisite craftsmanship

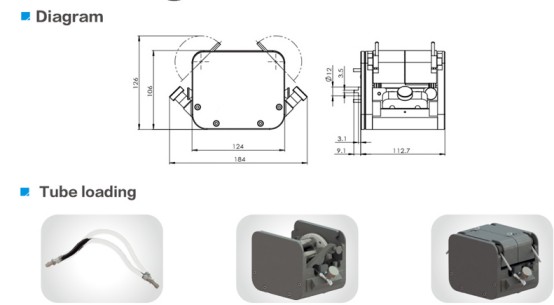

Tube loading

1. The working pipe in the pump head requires double Y-shaped tube components

2. Clamp the double Y-shaped tube assembly onto the tube clamp handles at both ends and lock the knobs at both ends

3. Insert the upper pressing block assembly, pull back the two levers and place them downwards and lock them
