Features

Simple pump head, tube ring-in clamp design, avoid incorrect tube loading, improves hose life

The pump head casing can be made of two materials: POM (polyoxymethylene) and aluminum alloy. Stainless steel roller, suitable for tube with wall thickness 2.5mm, easy to transfer viscous liquid

Can be with stepper motor, DC gear motor, and DC planetary gear motor as OEM purpose

Application: Chemical preparation transfer, food and beverage filling and other industries

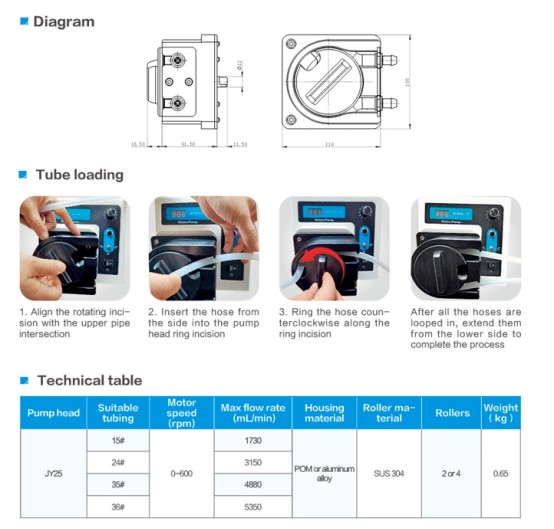

1. Align the rotating incision with the upper tube intersection

2. Insert the tube from the side into the pump head ring incision

3. Ring the tube counterclockwise along the ring incision

4. After all the tube looped in, extend them from the lower side to complete the process
