Introduction

It has AC motor drive, safety capacitor start, pump head with spring;   simple structure, self-adaption the tubing; supply fixed speed and   stable flow rate

Technical paremeter

• Power: 220V AC/55mA，50/60Hz or 110V AC/110mA，50/60Hz

• Fixed speed control: 15 kind of speeds are available for internal   control, 2.5、3.8、5、7.5、10、12、15、20、                25、30、40、50、60、80、110rpm

• Speed error: ±10%

• Operating direction: CW

• Start capacitor: safety capacitor

• Power: 14W

• Maximum noise: 45dB

• Life: 1500 hours

• Operating condition: Temperature 0 to 40°C, Relative humidity < 80%

• Installation: panels installation

• Max flow rate: 183ml/min

• Max pressure: 0.18MPa

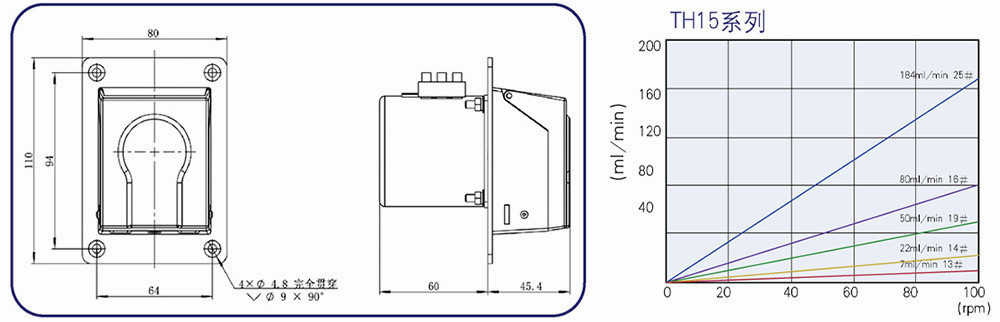

Dimensions
