Should you have price for peristaltic pumps required, please feel free to contact us.

OEMDD120
Fixed Speed
OEMDD120
It has AC motor drive, safety capacitor start, pump head with spring;   simple structure, self-adaption the tubing; supply fixed speed and   stable flow rate
CONTACT US
CHARACTER
TECHNICAL PARAMETERS

Product description:


Consist of KZ25 Pump head and Direct Current Motor. Simple instruction. Used for matching industrial equipment.

Technical Parameters:

Power: DC 12V.

Speed: fixed rotary speed, can choose various speed.

Max referenced flow rate:1200ml/min

Available Tubing: 15#,24#,35#,36#.

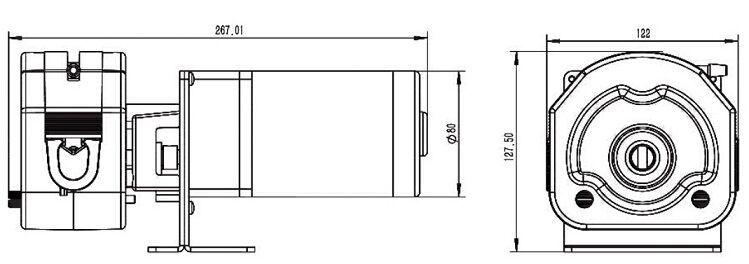

Dimension: 275*122*128 (mm)



1436421038718419 (1).png




Technical Data Sheet


ProjectParameter
Adapted pump headKZ25、KZ15、YZ25、BZ25、BZ15、DG、YZⅡ
Speed rpm15、20、25、30、40、50、60、100、120、200、240、330、400、500、600
Power requirementsDC 12V/DC 24V
Power≤250W
Working environmentRelative humidity <80%
Ambient temperature 0-40℃
Dimensions (length × width × height) mm275×122×128
