• Precision: ≤5‰

• Stroke length: 6000 steps (60mm)

• Control precision: 1 step (0.01mm)

• Speed: 0.05-50mm/s

• single stroke operating time:1.2--1200s

• Compatible Syringe: 50ul,100ul,250ul,500ul,1ml,2.5ml,5ml,10ml,25ml


• Valve type: two position three way electromagnetic valve


• Turn time: ≤100ms

• Max pressure: 0.1MPa


• Fluid Path: borosilicate glass, PTEF, PEEK


• Valve fitting: 1/4″-28UNF inner thread interface


• Output signal: three OC gate


• Communication interface: RS232/485 options


• The rate of communication: 9600/38400bps options


•  Set up pump address: through 16 digit dial switch

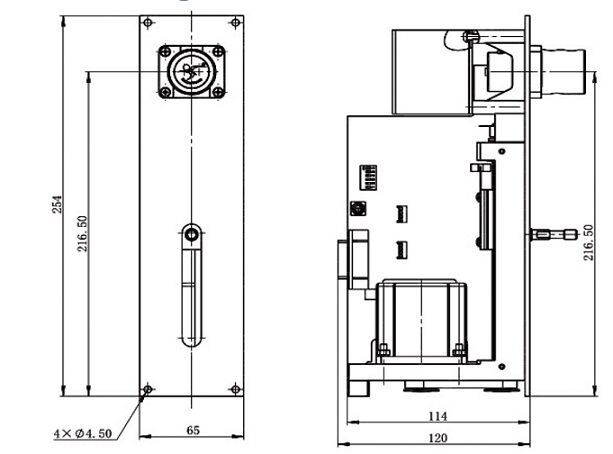

• Dimensions : 114mm×45mm×254mm


• Power: 24V DC/1.5A


• Operating condition: Temperature 15 to 40℃(the temperature effect syringe much)


• Relative humidity :80%


• Weight: 2KG


Optional accessories

Syringe
Tubing
Power adapter

Programmable Capabilities: Ramps, cutoff velocity, backlash compensation, syringe speeds, loops, terminate moves and delays, error detection, valve rotation selection, enhanced “h” factor capabilities including valve rotation CW and CCW
