Introduction

LST01-1A micro volume touch screen syringe pumps is single channel syringe pump which is mainly used in bio-laboratory. The acceptable syringe specification is from 10 μL to 10 mL. Suitable for high accuracy and small flow rate liquid transferring.

Technical specification

Syringe pump operating modes: push-pull mode

number of syringe：1

Maximum stroke：78mm

Stroke Resolution：0.156μm

Linear velocity range：5μm/min-65mm/min(flow=Line speed×Sectional area of the syringe)

Line speed adjustment resolution：5μm/min

Stroke control accuracy：error≤±0.5%(stroke≥30% of the maximum stroke)

Rated linear thrust：＞90N

Option of syringe：the main syringe models of major manufacrurers for option

Syringe setting：can input the diameter of syringe directly

Flow calibration： more accurate flow of liquid by calibration

Operating parameters setting：dispensing volume and time etc

Parameter to be displayed：volume,flow,line speed

Power off memory：can select if work as the previous status before power off when re-powered

Signal output：2 way OC gate signal output to indicate start/stop status.

Control signal input：2 way start/stop control terminal，1 way go down to control start/sotp by triger signal,

 1way TTL level signal to control start/stop

commuication interface：RS485

power supply：AC 90V-260V/15W

Suitable temperature：0℃-40℃

Suitable humidity：relative humidity＜80%

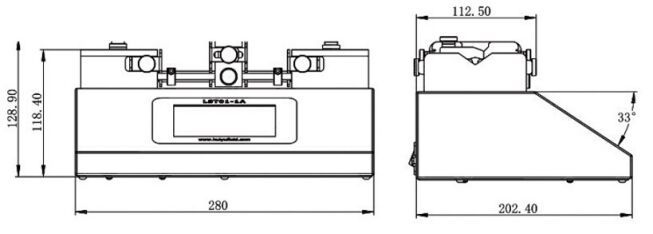

Measurements：280×210×140(mm)
Weight：3.6kg

Function and Features of LST01-1A

Syrige diameter input：can select syringe in list or input the data of diameter directly.

Userfriendly manu：Large LCD screen

Power off memory: 1.EEPROM save the set parameters after power, no need to re-set. 2. Under flow mode when power is restored

  can continue to operate according to set parameters after power-up or stop

Jam protection function: When the working process of advancing the syringe pump mechanism is blocked, injection pump will stop

  advancing mechanism work issued whistle alarm

RS485 communication with host PC

Exteral control：input / output control function

Flow calibration： more accurate flow of liquid by calibration

Syringe protection function:By adjusting the position of the stopper can prevent damage to the syringe
