Product description

It is an industrial large-flow peristaltic pump. The body is made of stainless steel, driven by a DC motor, and is more powerful. It is mostly used in harsh industrial occasions. It has the characteristics of positive and negative, start-stop control, convenient speed adjustment, etc.; working speed 10-600 rpm; cascadable double pump heads, suitable for continuous and stable transmission of large flow in industrial sites

Features

• Automatic correction function

• Membrane buttons can control start and stop, direction and speed

• Can quickly fill and empty function

• It can communicate with the host computer

• External control signal can control start and stop, direction and speed

• Power-down memory function

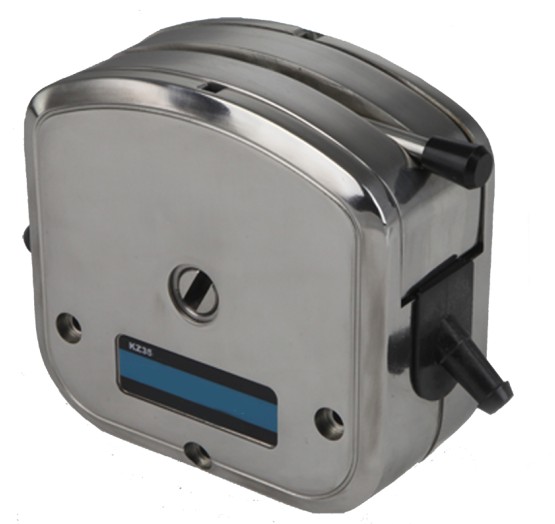

• Different pump heads can be replaced

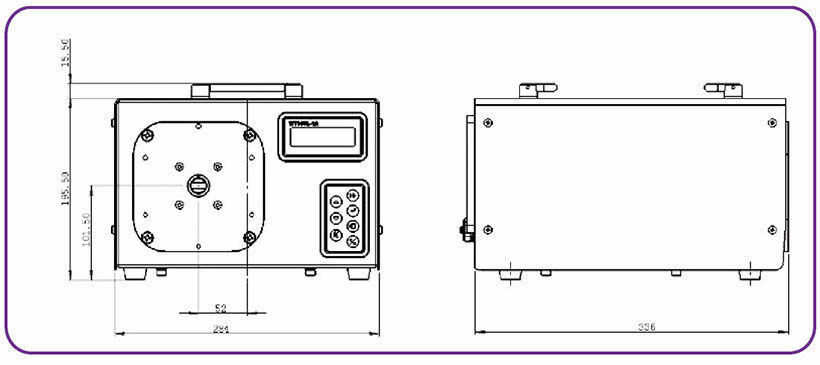

Dimensions

Technical indicators

• Speed range: 10-600rpm, resolution lrpm; direction reversible

• Adjustment method: membrane button adjustment

• Display interface: flow mode, speed mode

• Display mode: graphic dot matrix liquid crystal display

• Communication method: RS485 half duplex

• External control interface: external control start and stop, direction, speed (0-5V/0-10V, 4-20mA)

• Applicable power supply: 176-264V AC, 50/60Hz

• Maximum power: 320W

• Working environment: ambient temperature 0-40 ° C, relative humidity <100%

• Dimensions: 352*291.4*195.5 (length × width × height) mm

• Weight: 10kg

• Protection level: IP31
