product description

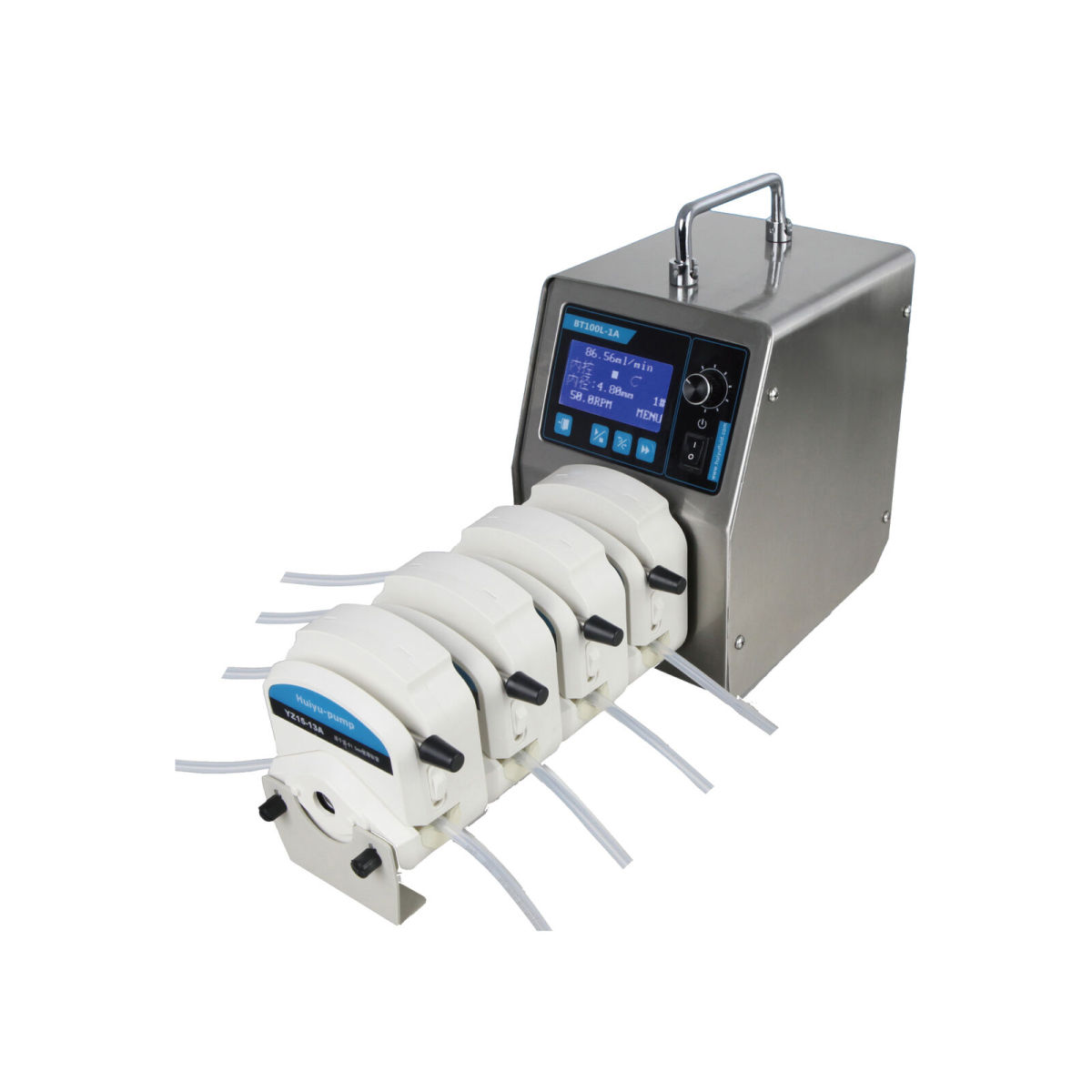

The drive output torque is large, and it can drive various multi-channel pump heads such as YZ series and DG series, which can provide a flow range of 0.02-380ml. The 128×64 dot matrix large-screen liquid crystal display information can simultaneously display the pump flow rate and speed with flow calibration function. it has start/stop, forward/reverse, full speed and other operation control functions. The operation is completed by membrane button and rotary encoder switch.

Features

Membrane button can control start and stop, direction, speed

• Quick filling and emptying function (maximum speed operation)

• Can communicate with the host computer

• External control signal can control start and stop, direction, speedPower-down memory function; leakage protection function; overheat protection function

• Replaceable different pump headsTechnical ParametersSpeed range: 1-100rpm, resolution 0.1 rpm

• External control interface: external control start and stop, direction, speed (0-5V/0-10V, 4-20mA)

• Display mode:LCD

• Communication method: RS485

• Output torque: 2Nm

• Applicable power supply: AC 220V ±20% 50~60Hz

• Power consumption: ≤55W

• Working environment: ambient temperature 0 ° C ~ 40 ° C relative humidity <80%

• Dimensions: 200 × 160 × 240 (length × width × height) mm

• Drive weight: 5.5kg

• Protection level: IP31

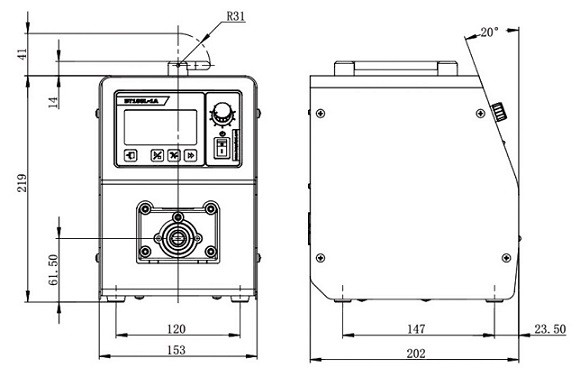

EASUREMENTS:
