Should you have price for peristaltic pumps required, please feel free to contact us.
Max flow rate:6000ml/min
■ Speed : 10-600 rpm, reversible
■ Speed precision: 1 rpm
■ Speed control: toggle switch and rotary encoded switch, accept external control and communication control Display: LCD
■ Dispensing volume: 0.1 mL to 99.9 L
■ Calibration function: The flow rates and the dispensing volume can be calibrated to increase the accuracy
■ Copy number: 1 to 9999 , 0 means unlimited cycle
■ Pause time : 0.1 s to 99 min
■ External control: start/stop control, direction control, speed control (0 - 5V ,0 -10V , 4 - 20 mA , 0 - 10KHz optional )
■ running mode signal output: 166.7Hz-10kHz
■ corresponding10rpm-600rpm
■ Start and stop status signal output: OC gate signal output
■ Direction status signal output: OC gate signal output
■ Communication interface: RS 485
■ Memory function: repower the pump, user can choose whether to continue in accordance with the state before the power-down
■ Prime button for fast filling and emptying
■ Power: AC 90V-260V/40W
■ Operating condition: Temperature 0 to 40°C, relative humidity < 80%

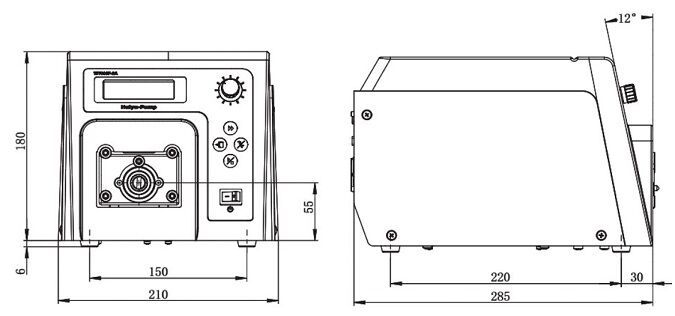

■ Dimensions (L × W × H): 285 × 207 × 180 (mm)
■ IP rating: IP 31
■ Drive weight: 5.2 kg
PARAMETERS :
