max flow rate :1140ml/min
Technical parameter

• Speed: 1-300 rpm, reversible Speed precision: 1 rpm

• Speed control: membrane keypad and rotary encoded switch

• Display: LCD displays flow rate, speed or dispensing mode

• Copy number: 1 to 999, 0 means unlimited cycle

• Dispensing volume: 0.1 mL to 99.9 L

• Pause time : 1 to 999 sec


• Back suction angle: 0 to 360°, 18° increments

• External control: 0 - 5V , 0 - 10V , 4 - 20 mA , 0 - 10KHz optional

• Communication: RS485


• Output signal: start/stop, direction output and speed, OC gate output mode


• Power: 90-260V AC，50/60Hz


•  Power consumption: < 50W


• Operating condition: Temperature 0 to 40°C, Relative humidity < 80%


• Dimensions (L × W × H): 276×184×175 (mm)


• Drive Weight: 3.5 kg

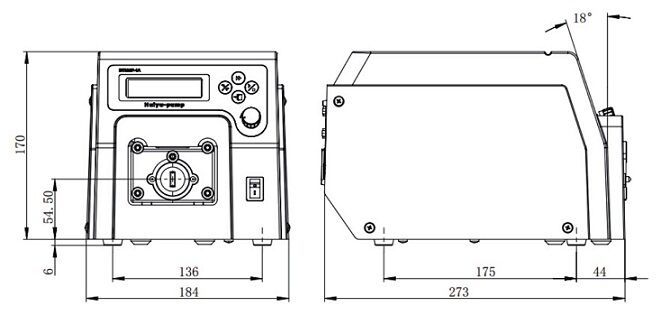

 EASUREMENTS:
