Technical parameter
Speed: 0.1-100 rpm, reversible
Speed precision: 0.1 rpm
Dispensing volume: 0.01mL to 9.99L
Copy number: 1 to 9999, 0 means unlimited cycle.
Pause time : 0.1sec to 99.9 min
Speed control: membrane keypad and rotary encoded switch
External control: 0 - 5V , 0 - 10V , 4 - 20 mA , 0 - 10KHz optional
communication control: RS485
Output signal: start/stop, direction output and speed, OC gate output mode
Operating condition: Temperature 0 to 40°C, Relative humidity < 80%
Dimensions (L × W × H): 243×151×157 (mm)
Power: 90-260V AC，50/60Hz
Power consumption: < 40W
Drive Weight: 3.5 kg
IP rating: IP 31

Technical Data Sheet

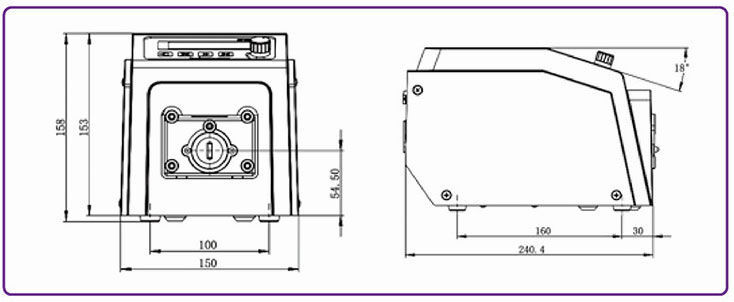

EASUREMENTS:
