Technical parameter

Speed: 10-600 rpm, reversible Speed precision: 1 rpm
Speed control: membrane keypad
Display: LCD displays flow rate, speed or dispensing mode
Copy number: 1 to 9999, 0 means unlimited cycle
Dispensing volume: 0.1mL to 99.9L
Pause time : 0.1 to 99.9min
Back Suction: 0 to 9.9 revolutions , precision is 0.1 revolution
External control: 0 - 5V , 0 - 10V , 4 - 20 mA , 0 - 10KHz optional
Communication: RS485
Output signal: start/stop, direction output and speed, OC gate output mode
Power: AC176V-264V            50/60Hz
Power consumption: < 300W
Operating condition: Temperature 0 to 40°C, Relative humidity < 100%
Dimensions (L × W × H): 420×229×270 (mm)
Driver W eight:12kg

Functions

• Dispensing function

• Calibration function


• Back suction function


• Display:LCD displays


• Prime key:for fast filling and emptying


• Memory funciton


• Communication function


• Output function

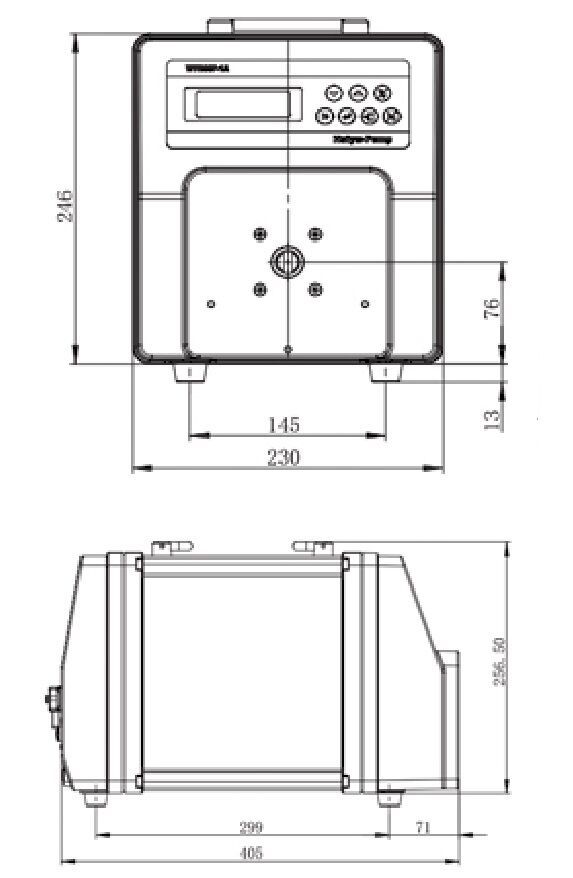

EASUREMENTS:
