Features

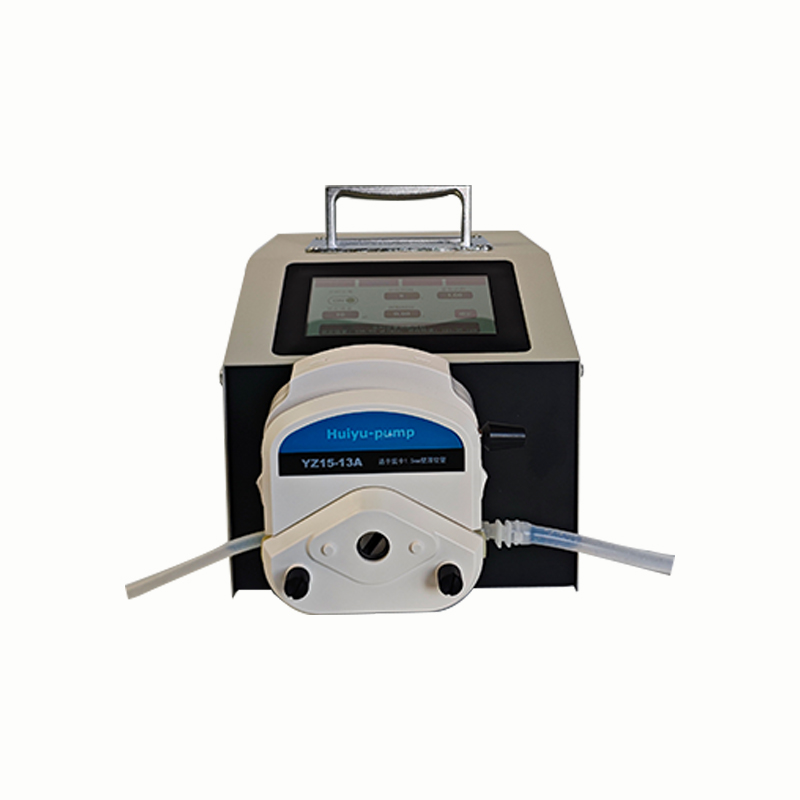

Flow‑rate‑based intelligent peristaltic pump. Working status, flow rate and parameters are dynamically visualized on one single screen.
- 4.3‑inch touchscreen, featuring intelligent calibration and on‑line fine‑tuning functions.
- Multiple operation modes: quantitative mode & timed quantitative mode. Ideal for precise dispensing and feeding of various complex liquids.
- Supports installation of multiple pump heads with versatile external control options.
- Widely applied for drug filling and chemical reagent sub‑packaging: oral liquids, diagnostic reagents, cosmetics (lip gloss, perfume, etc.)
Technical Parameters
•Motor speed: 0.1‑600 rpm
•Speed resolution: 0.01 rpm
•Flow range:
CT600‑3F/YZ15: 0.17‑2280 mL/min CT600‑3F/KZ25: 2.11‑6000 mL/min•Operation: Touch screen & physical keys
•Start/Stop & reverse signal: Passive switch input (foot switch compatible)
•Active switch signal: 5V, 12V, 24V optional
•Output interface: Motor running‑status signal output
•Dispensing volume range: 0.01‑999999 mL
•Power supply: AC 220V 50/60Hz (standard); AC 110V 50/60Hz (optional)
•Dispensing time: 0.5‑999.99 s
•Communication interface: RS485, Modbus RTU protocol supported
•Interval time: 0.5‑999.99 s
•Time resolution: 0.01 s
•Dispensing cycles: 1‑9999 times; set to 0 for unlimited operation
•Reverse angle: 0‑360°
•Outlet pressure: 0.17 MPa
•Power consumption: ＜80 W
•Dispensing accuracy: ＜±1 %
•Working conditions: 0‑40 °C, relative humidity ＜80%
•Display: 4.3‑inch true‑color LCD
•IP protection grade: IP31
•Drive unit weight: 5.0 kg
•Drive unit dimensions: 172 × 165 × 190 mm
Technical table
