Should you have price for peristaltic pumps required, please feel free to contact us.

GZ30-1A

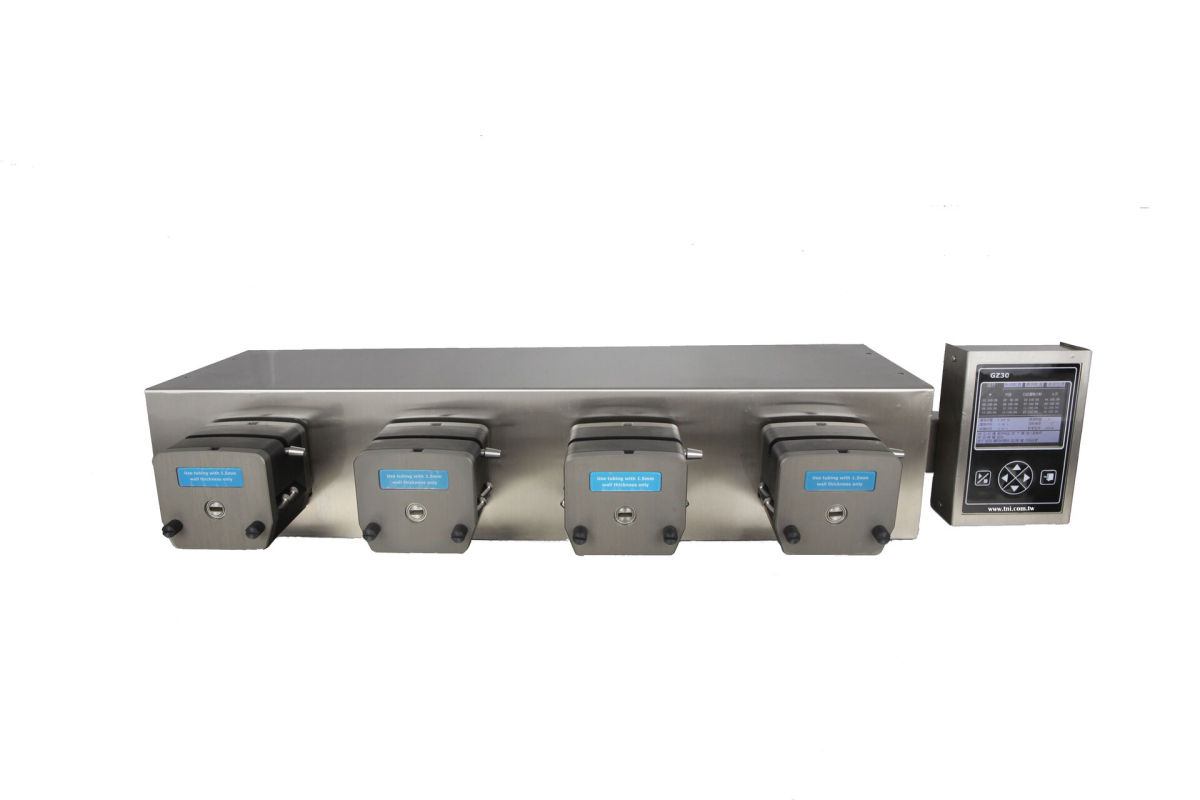

Peristaltic Pump Filling System
GZ30-1A
Volume range of filling: 0.1ml—30ml
Time range of filling: 0.5—30s
Speed range: Calculate automatically according to the volume and time of filling.
Back Suction Angle: 0—1000°
CONTACT US
CHARACTER
TECHNICAL PARAMETERS

Technical paremeter


Volume range of filling: 0.1ml—30ml
 Time range of filling: 0.5—30s
 Speed range: Calculate automatically according to the volume and time of filling.
 Back Suction Angle: 0—1000°
 Speed range of Tubing wash: Tubing wash and  pre-filling, 15—350 rpm(13#, 14#, 19#, 16#)
 Calibration: put the actual volume into the pump, it can make a calibration automatically.
 Adjust solution amount online: Users can adjust the solution amount and percentage online
 Number of filling: can set the filling times without signal control, 1—60000, "0" means infinite loop way.
 Start/stop control (stop—filling when lack of bottles): 4 pairs of contacts input, corresponding to 4 channels.
 Memory Function: Repower the pump, it can keep the parameters before power—down.
 Communication Interface: RS485, Support Modbus Rlues.
 Dimension: 640×265×130 (mm)
 Available Power: 220VAC±10%/150W
 Working  condition temperature: 0℃—40℃
 Relative Humidity : ＜80%
 IP Grade: IP31





PARAMETERS :


Available PumpheadFilling Volume(ml)Tubing specificationFilling Time(s) repeatability errorDispensing head ID(mm)Production Capacity (pcs/min)
DMD15-1A0.1-0.32×13"0.5-0.7±6μl≤0.540-35
0.3-0.60.7-1.1±2%≤0.535-28
0.6-1.01.1-1.7±1%≤0.528-22
0.6-1.04×13"0.7-1.0±2%≤1.035-30
1.0-2.01.0-1.8±1%≤1.030-21
1.0-2.02×14"0.6-0.9±2%≤1.037-31
2.0-4.00.9-1.6±1%≤1.031-23
2.0-3.02×19"0.7-0.9±2%≤1.535-31
3.0-5.00.8-1.3±1%≤1.533-26
4.0-6.02×16"0.8-1.0±2%≤2.033-30
6.0-10.01.0-1.6±1%≤2.030-23
