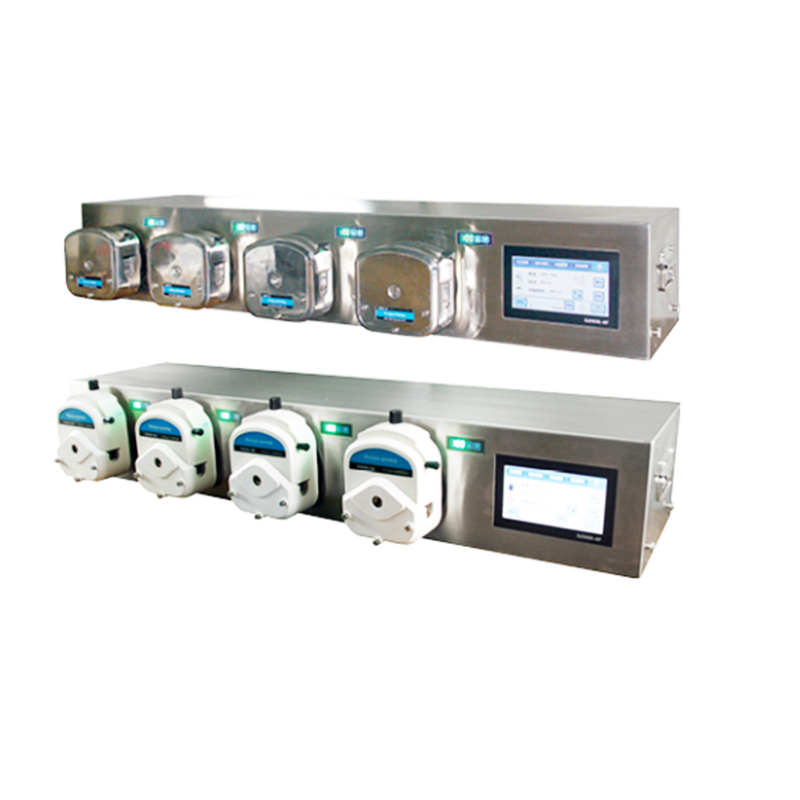

Features

• Stepper motor drive (servo‑motor optional), equipped with a 7‑inch industrial‑grade LCD screen and 304 stainless‑steel construction
• The filling system comprises a control module and filling units. The quantity of filling units can be freely configured and combined. One controller can drive up to 32 filling units
• Multiple‑parameter preset is supported, including single‑fill volume, filling duration, interval time, suction angle, password modification and more. Online calibration function is available. It can connect to a foot pedal switch or receive external switch‑trigger signals for remote‑control operation
• Standard available filling‑channel configurations: 2‑channel, 3‑channel, 4‑channel, 5‑channel

Technical parameters

• Motor speed: 1–600 rpm/min, resolution 0.1rpm
• Filling time: 0.1–6000s, resolution 0.1s
• Interval time: 0.5–999.9s
• Filling volume range: 0.1–9999.99mL
• Time resolution: 0.1s
• Filling times: 1–999999 times, "0" unlimited times
• Suction angle: 0–999°
• Filling accuracy: ± 1%
• Volume calibration: Each channel independently performs online proportional calibration, volume calibration, weighing calibration, and multiple weighing calibrations
• Control method: touch screen, external signal, communication
• Start/stop and reverse signal: passive switch signal, can be connected with a foot switch. Active switch signal, 5V–24V can be used
• Output interface: Output motor status (collector open circuit voltage output)
• Power supply: AC 220V 50Hz/60Hz (standard), AC 110V 50Hz/60Hz (optional)
• Password protection function: Protect pre-set parameters with password to prevent accidental operations
• Other functions: Offline and online function, on-bottle-cease-filling
• Drive size: 1236 × 326.30 × 210 mm
• Power consumption: <800W
• Working environment: temperature 0–40 ℃, relative humidity 20%–80%
• IP rating: IP31
• Driver weight: 46.3Kg

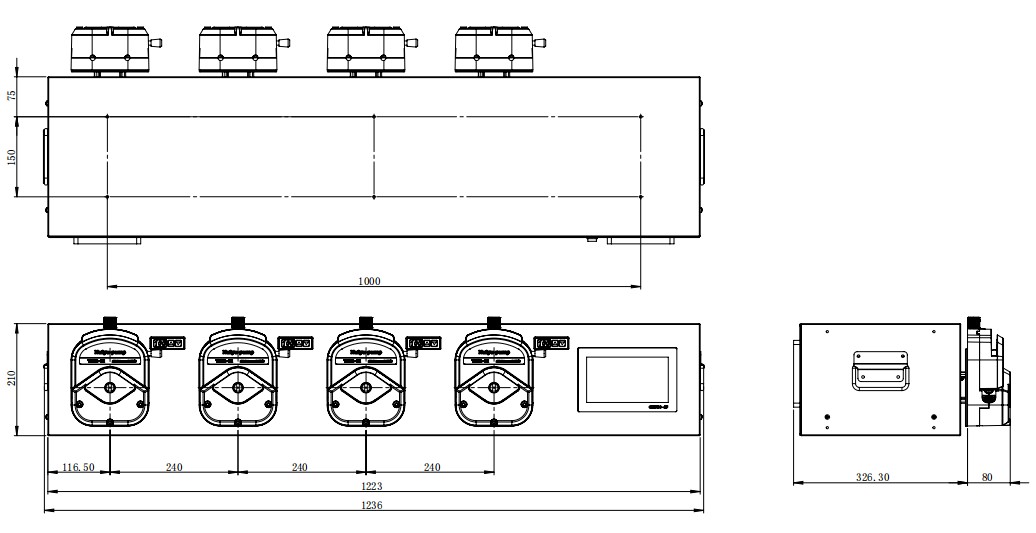

Diagram
