PRODUCTS / OEM Peristaltic Pump / With Motor Drive / OEMDSK100-01

With Motor Drive

OEMDSK100-01

CONTACT US

CHARACTER

TECHNICAL PARAMETERS

INTRODUCTION

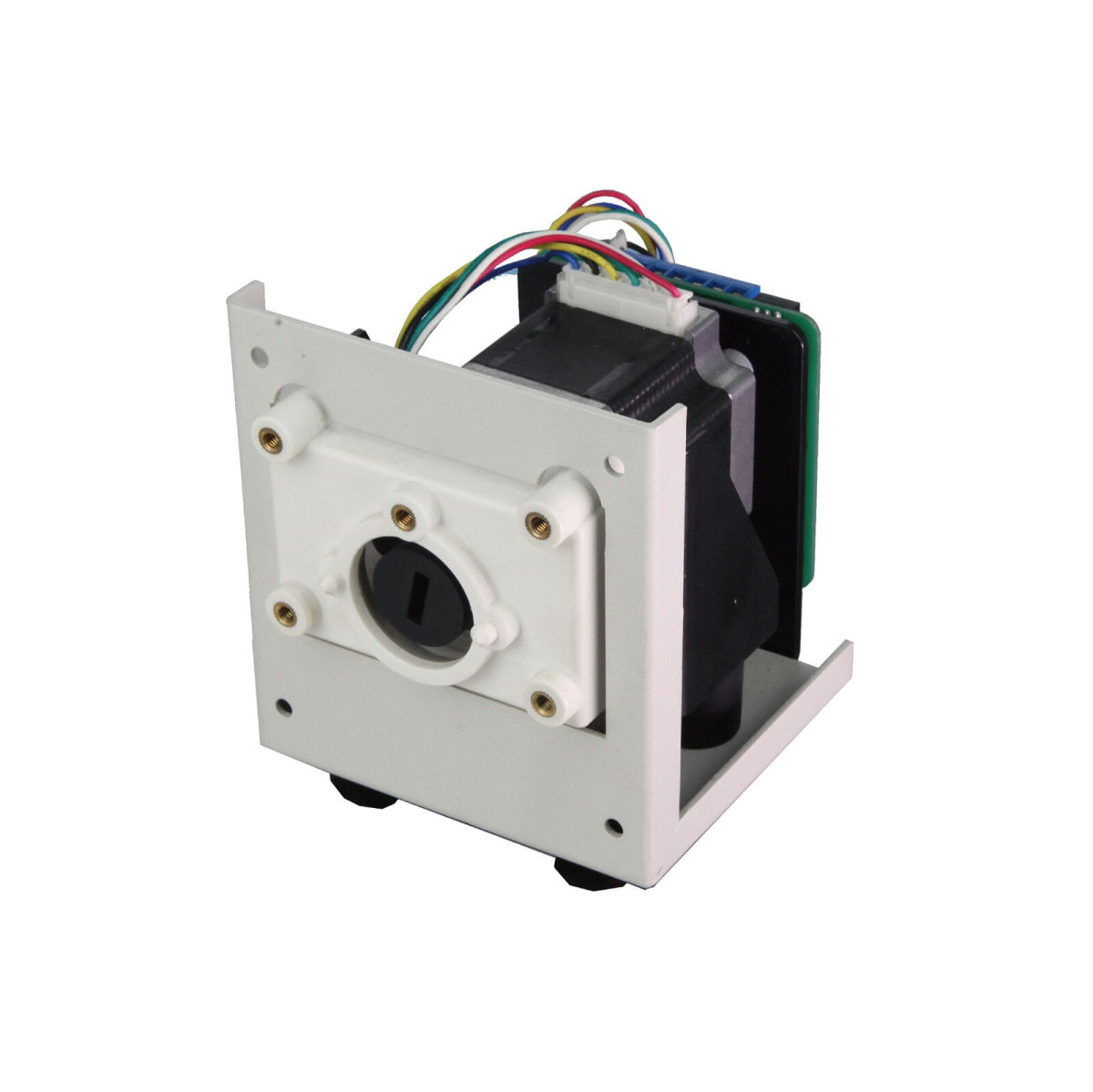

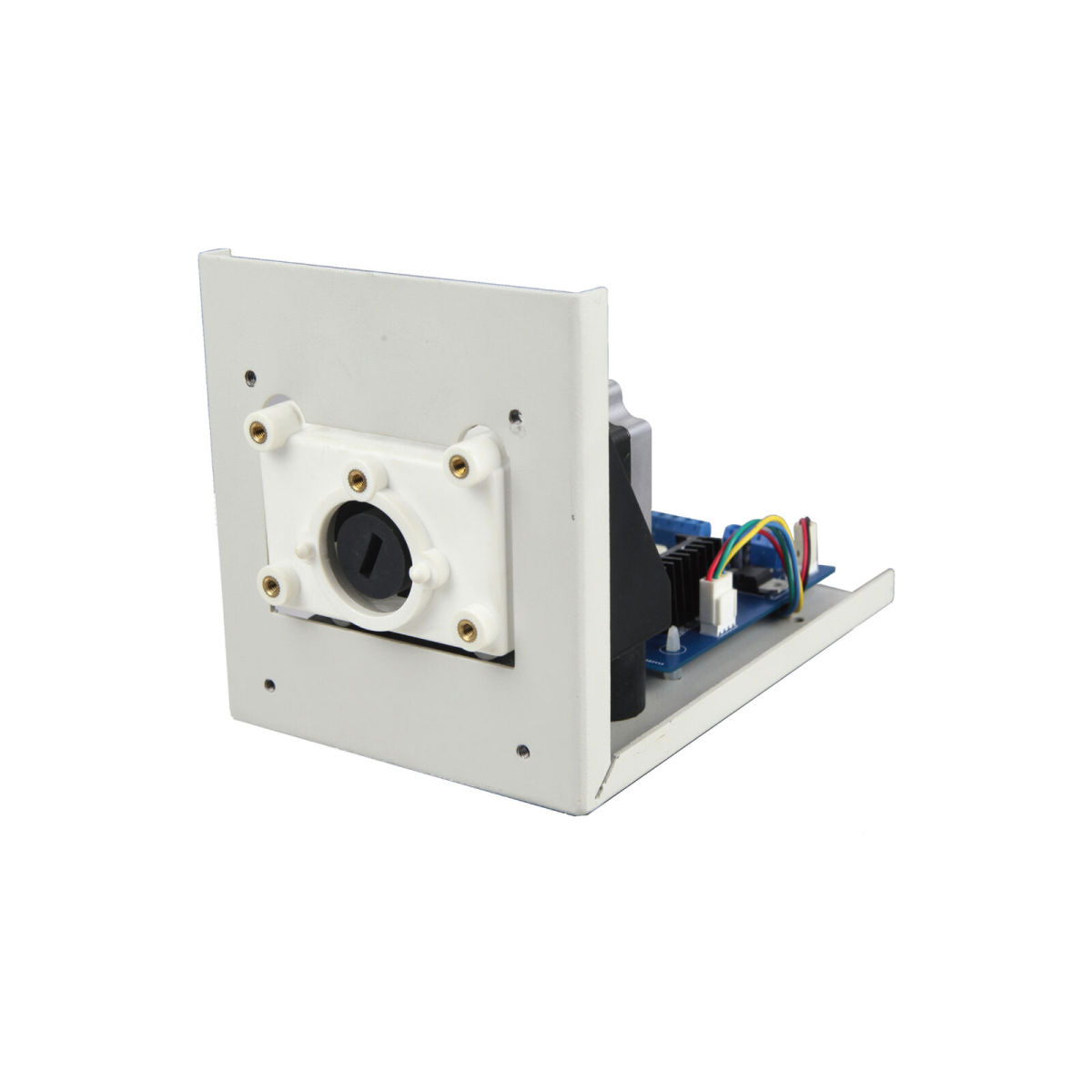

OEM100J series peristaltic pump driver by the 57 stepper motor matching a variety of control methods to form a small, simple structure, easy control of the peristaltic pump drive product line. Mainly in the equipment, equipment supporting the use of 380mL / min to achieve the following fluid transmission. DIP switch with external signal control mode, the external signal optional 4-20mA, 0-5V, 0-10V, 0-10kHz, and can provide the use of RS485 communication control products. Using the floor, panel compatible installation. Suitable for embedded installation in the device.

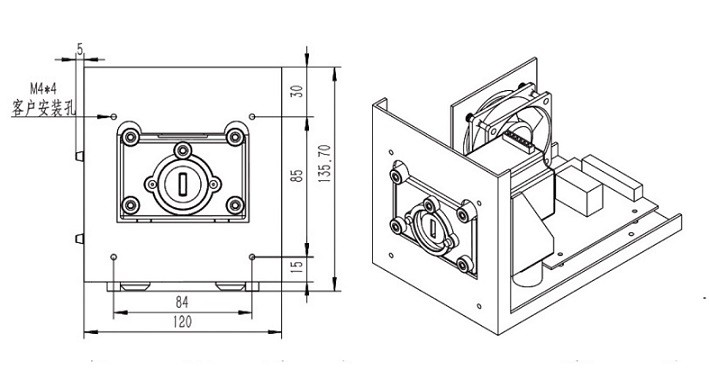

EASUREMENTS:

PARAMETERS :

Item	Parameters
Motor speed	≤100rpm，Resolution:0.1rpm
Direction(cw/ccw)	switching volume control
Start/stop control	switching volume control
Dial switch tocontrol speed	16 phases BCD dial switch，0 position for external signals，1-F position for (rpm)1、3、5、8、10、15、20、25、30、35、40、45、50、55、60、70、80、90、100
External speedsignal	4-20mA、0-5V、0-10V、0-10kHz signals for option，linear correspond to 0-100rpm，or custom made
Measurements(L×W×H)	129×82×90mm
Workingtemperature	0℃～40℃
Humidity	＜80%
Power supply	DC 12V/24V power consumption≤20W

FLOW RATE TABLE

Pump head	Tube type	Max flow rate
YZ15-1A	13#、14#、19#、16#、25#、17#、18#	380ml/min
YZ25-1A	15#、24#	270ml/min
BZ15	13#、14#、19#、16#、25#、17#、18#	380ml/min
BZ25	15#、24#	270ml/min
DG-1A/2A	wall thickness 0.8-1.0mm，内径≤3.17mm	48ml/min（per channel）
DG-1B/2B	wall thickness 0.8-1.0mm，内径≤3.17mm	32ml/min（per channel）
DMD15	13#、2×13#、14#、2×14#、19#、2×19#、16#	70ml/min（per channel）
