OEMDSK100-01
With Motor Drive
OEMDSK100-01
Consist of JY15 pump head, 42 step motor and Drive circuit board. The volume is small, Flushed installation.
​used for laboratory equipment, Analytical instrument.
CONTACT US
CHARACTER
TECHNICAL PARAMETERS

Product description:



Consist of JY15 pump head, 42 step motor and Drive circuit board. The volume is small, Flushed installation.

used for laboratory equipment, Analytical instrument.


Technical parameters:


Power: DC12V

Speed range: 0 -100rpm,

Speed adjustable: Manual adjusting switch, External control to control the various speed.

Speed precision；5 rpm/min

Available Tubing: 25#, 17#

Max referenced flow rate:  170ml/min

External control Type: 0-5V, 4-20Ma, 0-10Khz

Dimension: 130*73*82(mm)

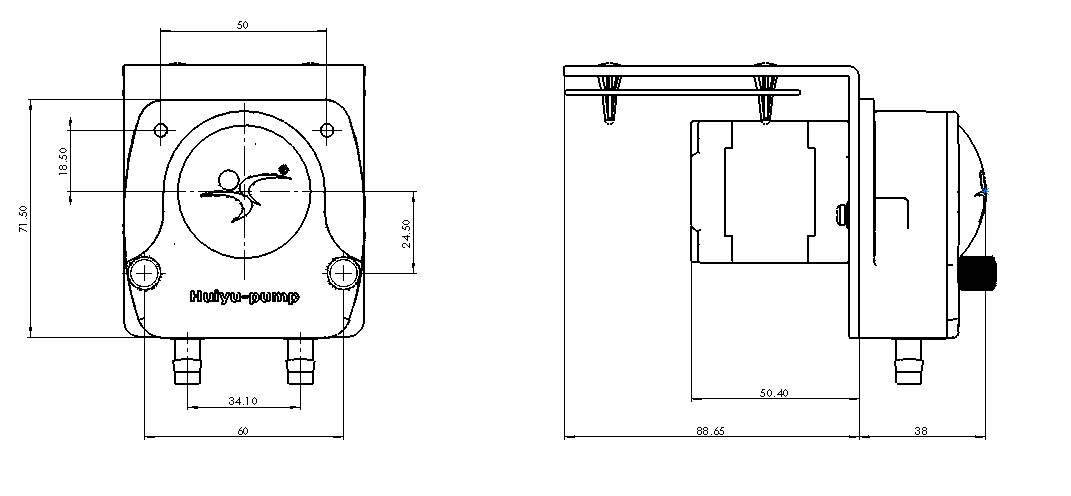

Outer Drawing:




Technical parameter


ProjectParameter
Range of rotation≤100rpm; resolution 0.1rpm
Speed resolution1rpm for internal control; 0.1rpm for external control
DirectionPositive and negative reversible, contact signal control; short-circuit reverse, open forward
Start and stopContact signal control; short-circuit stop, disconnect operation
Internal control speed16-speed BCD dial switch, 0-speed corresponding speed is controlled by external signal, 1-F-speed corresponding speed (rpm) 1, 3, 5, 8, 10, 15, 20, 25, 30, 35, 40, 45, 50 , 55, 60, 65, 70, 80, 90, 100
External control speed4-20mA, 0-5V, 0-10V, 0-10kHz linearly correspond to 0-100rpm
Dimensions181×60×96(L×W×H) mm
Use environmentRelative humidity <80%, ambient temperature 0-40℃
Power requirementsDC 12V/24V 1.5A
Applicable hose16#、25#、17#
Maximum reference flow170ml/min
