Features:

This product is mainly used for quantitative filling of microli-tre,the lower limit of microlitre is up to 30 u L, and the accuracy≤ + 0.5%.

Desktop filling and can be matched with automatic and semi-automatic filling machinery.

The appearance proportion is coordinated and symmetrical,compact and beautiful; each component is finely processed;

the lever rotates flexibly and locks reliably.

Material Description: The shell is made of hard anodized alumi-num alloy, with molybdenum disulfide nylon phase compensa-tion design for the rollers, 12 rollers, lower pulsation, and betterstability.

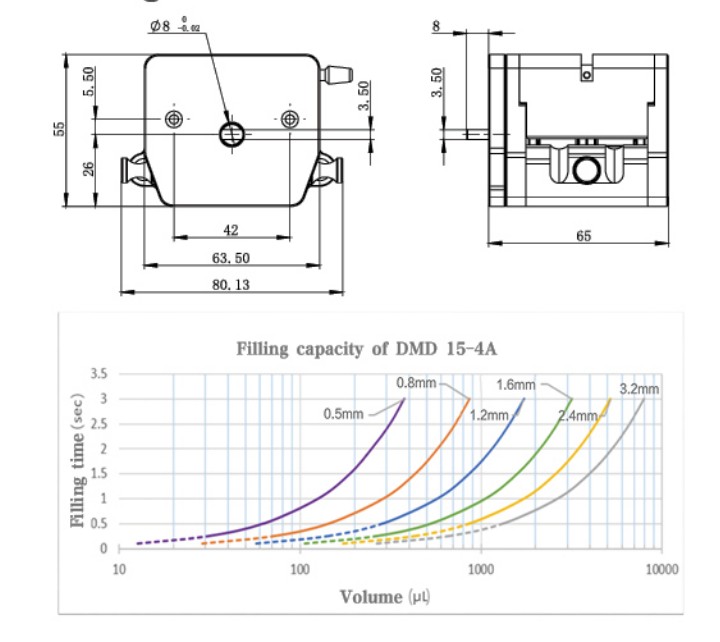

Diagram:

Filling accuracy: Within the filling volume rangeof 30 uL to 2000 uL, the filling accuracy tolerance ≤ +1%, which can reach 0.5%

Range of filling volume per second: 30 uL-2000uL

Repeat accuracy:CV<0.5%

Speed:≤ 350rpm

Suitable tubing: 13#, 14#, 19#, 16# (25# avail-able, not recommended), double or three-way combination tube components, compatible filling needle: 0.3mm, 0.6mm, 1.0mm, 1.6mm inner diameter filling needle

Mearsurement:80 x 65 x 55mm

Weight:0.408kg

Environmental temperature:0 - 40°C

Relative humidity:<85% RH, no condensation

Noise: 50dB (tested at a distance of 1m). The operating noise of the pump head is extremely low, and the noise of the driver is much greaterthan that of the pump head, which can be ignored
