Detailed introduction

Reference flow range: 0.0002-900ml/min

product description

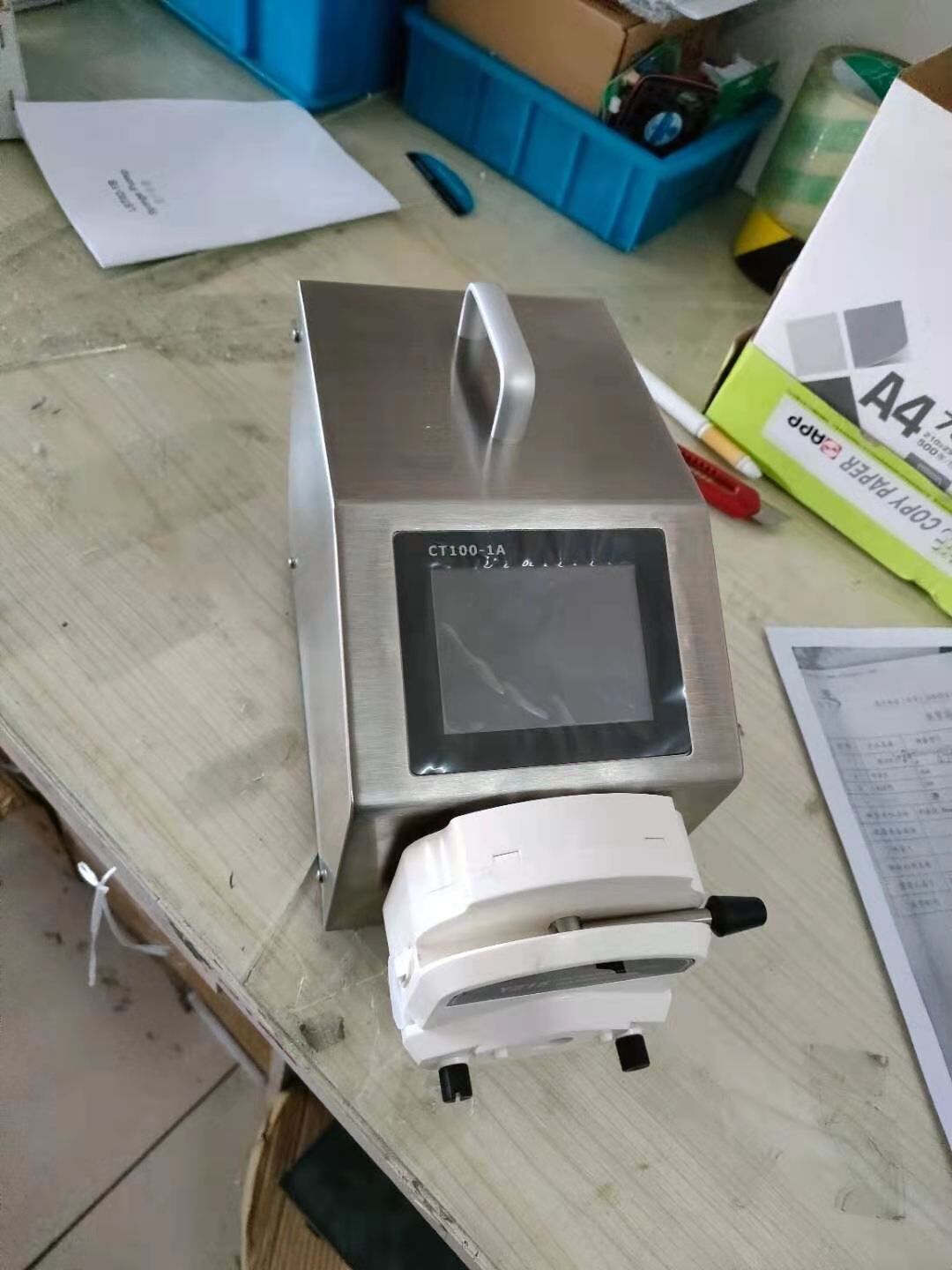

The metal casing design, the buttons and display are designed with advanced ergonomics and at an angle of 30° to the horizontal. Acid and alkali resistant, corrosion resistant.

In English and Chinese, the speed is increased to 200 rpm and the touch screen is controlled.

It can realize simple dispensing, timing quantitative, continuous packaging, flow testing and other functions.

Features

Touch screen operation

Start and stop functions

Clockwise and counterclockwise operation, LED indication operation

Speed adjustment function (increasing speed and deceleration), which can display the speed and direction

Full speed function (to achieve fast filling and draining of pipes) Communication with the host computer (computer)

External control function (standard current, voltage, pulse signal control speed; level signal control start and stop, direction)

Power-down memory function

Leakage and overheat protection

Simple dispensing function, which can set running time, intermittent time, running times, realize timing quantitative, continuous packing, flow test, etc.

With suckback function, effectively prevent liquid dripping

Technical Parameters

Speed range: 0.1-200 rpm, resolution 0.1 rpm

Timing running time: 0.1~999 seconds/min/hour

Intermittent time: 0.1~999 seconds/min/hour

Number of cycles: 0~999 times (0 is an infinite loop)

External control interface: start-stop control, direction control, speed control (0-5V/0-10V, 4-20mA, 0-10kHz)

Communication method: RS485 half duplex

Applicable power supply: suitable for a wide range of voltages 90-260V AC, 50/60Hz

Maximum power: <40W

Working environment: ambient temperature 0-40 ° C, relative humidity <80%

Weight: 2.5kg

Dimensions: 228 × 130 × 160 (length × width × height) mm

Protection level: IP31

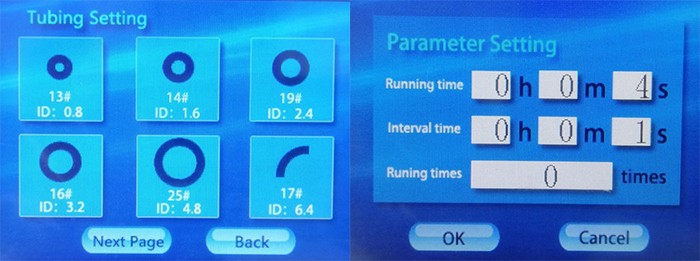

Pump screen
