OEM300J-1A
Without Motor Drive
OEM300J-1A
Peristaltic pump from the 57 stepper motor with mounting bracket composed of small size, simple structure of the peristaltic pump drive products. Mainly in the equipment, equipment, supporting the use of a variety of pump head can be used to achieve the following 1140mL / min fluid transmission. By the user direct drive stepper motor to control the work process, using the floor, panel compatible installation.
CONTACT US
CHARACTER
TECHNICAL PARAMETERS

Introduction:


Peristaltic pump from the 57 stepper motor with mounting bracket composed of small size, simple structure of the peristaltic pump drive products. Mainly in the equipment, equipment, supporting the use of a variety of pump head can be used to achieve the following 1140mL / min fluid transmission. By the user direct drive stepper motor to control the work process, using the floor, panel compatible installation.

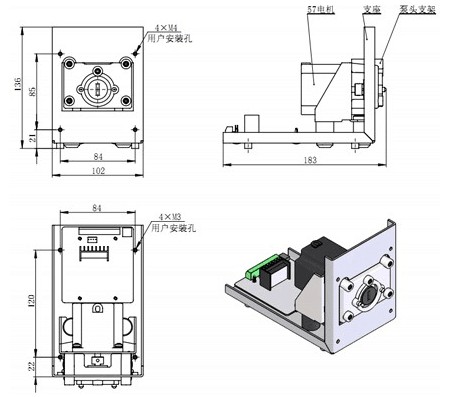

EASUREMENTS:





PARAMETERS :


ItemParamentersItemParamenters
Motor speed（DGpump head）≤100rpmSuitable humidity＜80%
Motor speed（other pump head）≤300rpmSuitable temperature0℃～40℃
Measurements(L*W*H)103mm*102mm*130mm

Suitable pump headSuitable tubingMax flow  rate(ml/min)
YZ15-13A13#、14#、19#、16#、25#、17#、18#1140
YZ25-13A15#、24#870
DG10-1A(6)、DG10-2A(6)Inner Diameter≤3.17mm，wall thickness 0.8mm-1.0mm48(per channel）
DG10-1B(10)、DG10-2B(10)32（per channel）
BZ15-14#14#75
BZ15-16#16#230
BZ15-25#25#480
BZ15-17#17#840
BZ25-24#24#800
DMD15-1A2*13#、4*13#、2*14#2*19#、2*16#1050
