Product Introduction

• ExdbibIICT4Gb and ExibtbIICT130  CDb explosion-proof grade

• Integrated casting body

• Intelligent operation system

(Explosion proof, dustproof, waterproof, three proof button and knob system

• Good anti-interference ablity tlhrough EMC testing

• The whole machine is IP66, designed specifically for industrial special environments

• Commnication servo motor control system

• Comprehensive upgrade of identification system

Technical Specificatios

• Execution standard: GB/T3836.1‑2021, GB/T3836.2‑2021, GB/T3836.4‑2021, GB/T3836.31‑2021, GB/T4208‑2017, GB/T14048.1‑2023,

  GB/T191‑2008, GB/T13306‑2011, GB/T13384‑2008

• Housing Material: 304 Stainless Steel
• Speed Range: 0.1‑650 rpm/min
• Speed Adjustment Resolution: 0.1 rpm/min
• Display: 4.3‑inch Industrial True‑Color LCD Screen
• Control Mode: Explosion‑proof keys, explosion‑proof push‑buttons, external‑signal control, communication control
• Operation Modes: Continuous Transfer Mode, Dispensing Mode
• Dispensing Mode: Set single‑fill volume, dispensing time, dispensing cycles and interval time
• Transfer Mode: Constant continuous operation with preset flow rate and rotational speed
• Dispensing Volume Range: 0.1 ml‑9999.99 ml
• Dispensing Time Range: 1 s‑9999 s
• Interval Time Range: 1 s‑9999 s
• Dispensing Cycles: 1‑9999 cycles; 0 = unlimited cycles
• Calibration Function: Automatic calibration after entering the actual delivered liquid volume
• Back‑suction Angle Setting: 0‑360°
• Communication Interface: RS485
• Power Supply: AC 220V ± 10%, 50/60 Hz
• Rated Power: 400 W
• External Speed‑control Signal: 0‑5 V, 0‑10 V, 4‑20 mA, 0‑10 kHz (optional)
• External Signal Input: Active switching‑signal (5‑24 V) for start‑stop, direction and full‑speed control
• Drive Unit Dimensions: 360 × 260 × 360 (L × W × H) mm
• Operating Temperature: 0‑40℃
• Relative Humidity: ＜90%
• Protection Class: IP66
• Drive Unit Weight: 30.1 kg

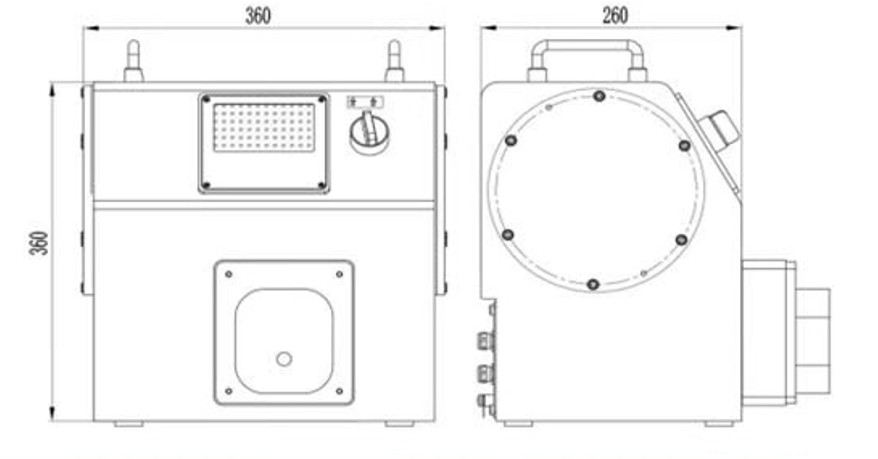

Diagram:
